Gearbox identification

Gearbox identification

Allocation, Audi A4 → Chapter „Audi A4 2008 ► Code letters, allocation, transmission ratios, capacities“

Allocation, Audi A5 → Chapter „Audi A5 Coupé 2008 ► Code letters, allocation, transmission ratios, capacities“

Allocation, Audi A5 Sportback → Chapter „Audi A5 Sportback 2008 ► Code letters, allocation, transmission ratios, capacities“

Location on gearbox

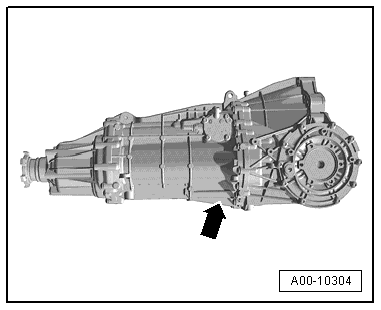

t	-Arrow- code letters, serial number and gearbox part number → Fig.

A00-10304

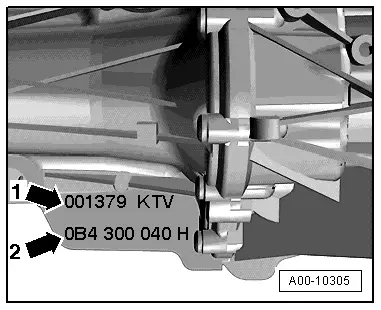

-Arrow 1- gearbox code letters and consecutive serial number

A00-10350

Example:	001379	KTV
	Serial number	Code letters

-Arrow 2- manual gearbox „0B4“ with gearbox Part No. (e.g. 0B4 300 040 H)

Note

The code letters for the gearbox are also given on the vehicle data stickers.
