Q7 Quattro V6-3.6L (BHK) (2007)
/Page-5580003.png)
-

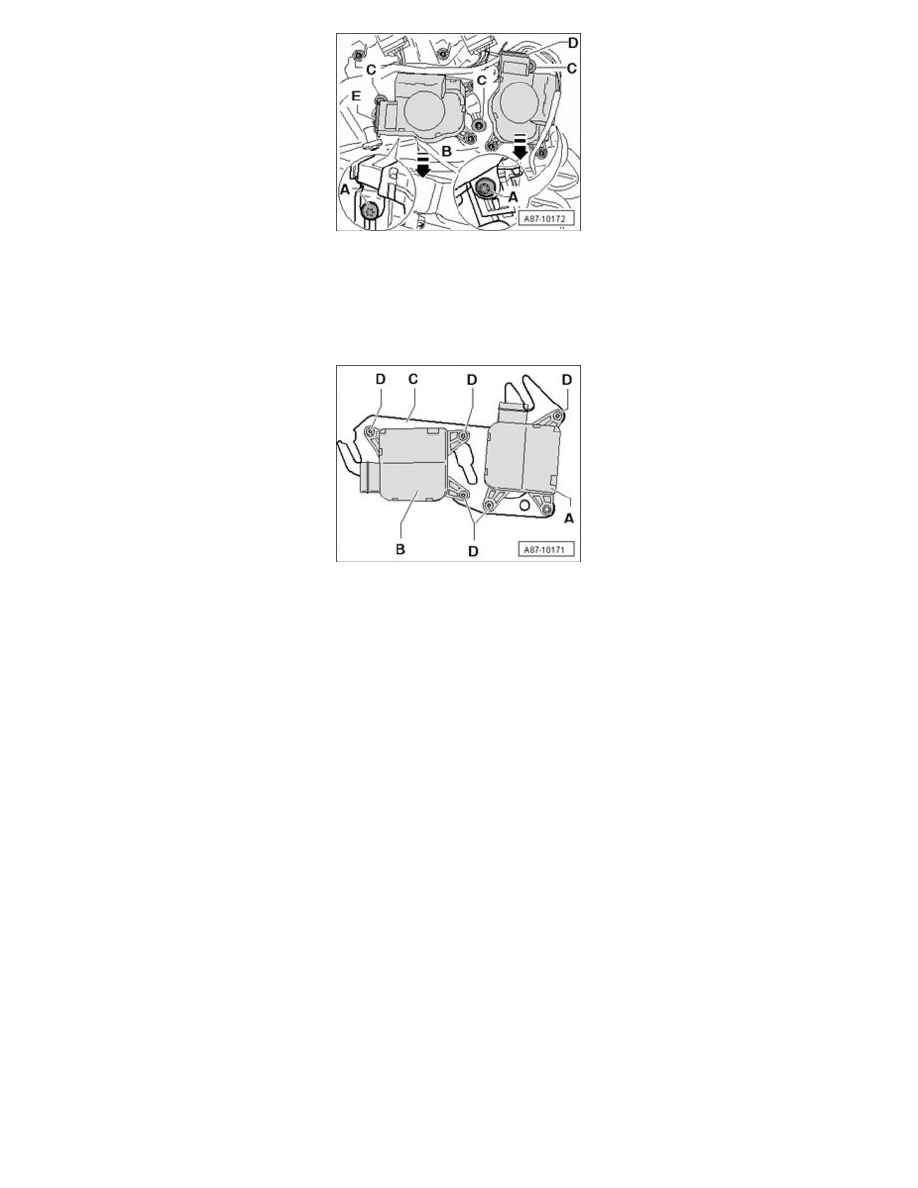

Slide retaining plate - B - with control motors on to heating A/C unit from below.
-
Check routing of electrical wire and make sure while installing that the wires do not come into contact with moving parts of the control motors and
flap levers.
-
Check position of bolts - C - and their fit in retaining plate guides (if retaining plate fits too loosely on bolts - C -, screw them in if necessary far
enough that there is no longer any play--do not tighten).
-
Install bolts - A -.
-
Install retaining plate - C - with Left Footwell Flap Motor V108 and Left Temperature Flap Motor V158 (only present on "Comfort" version A/C
system).
-
Install the remaining removed components again in reverse order.
-
Check DTC memory of front A/C control head Climatronic Control Module J255 and erase DTCs displayed if necessary. Vehicle Diagnosis,
Testing and Information System VAS 5051 in "Guided Fault Finding" function.
-
Perform basic setting and output Diagnostic Test Mode (DTM) on the A/C system. Vehicle Diagnosis, Testing and Information System VAS 5051
in "Guided Fault Finding" function.
