Drive Belt: Diagrams

Make

Audi

Model

Q7 Quattro

Engine

V6-3.6L (BHK)

Year

2007

Section

Drive Belt › Diagrams

MaintenanceDiagrams

Drive Belt: Diagrams

-

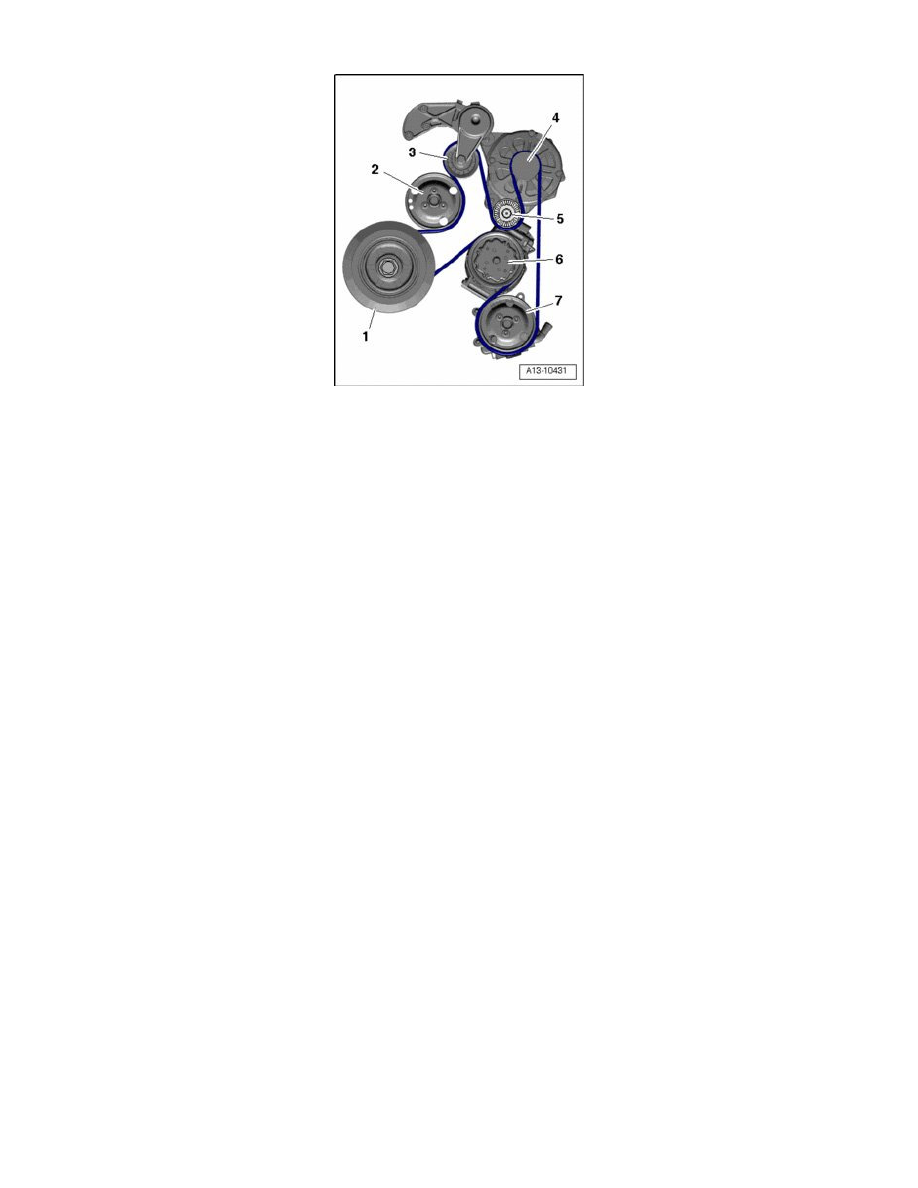

Route ribbed belt as follows:

1. Vibration damper
2. Coolant pump
3. Tensioning roller
4. Generator
5. Idler roller
6. Air conditioner compressor
7. Power-steering pump

Note:  When installing ribbed belt, make sure it is seated correctly on the pulleys.
