Alignment: Specifications

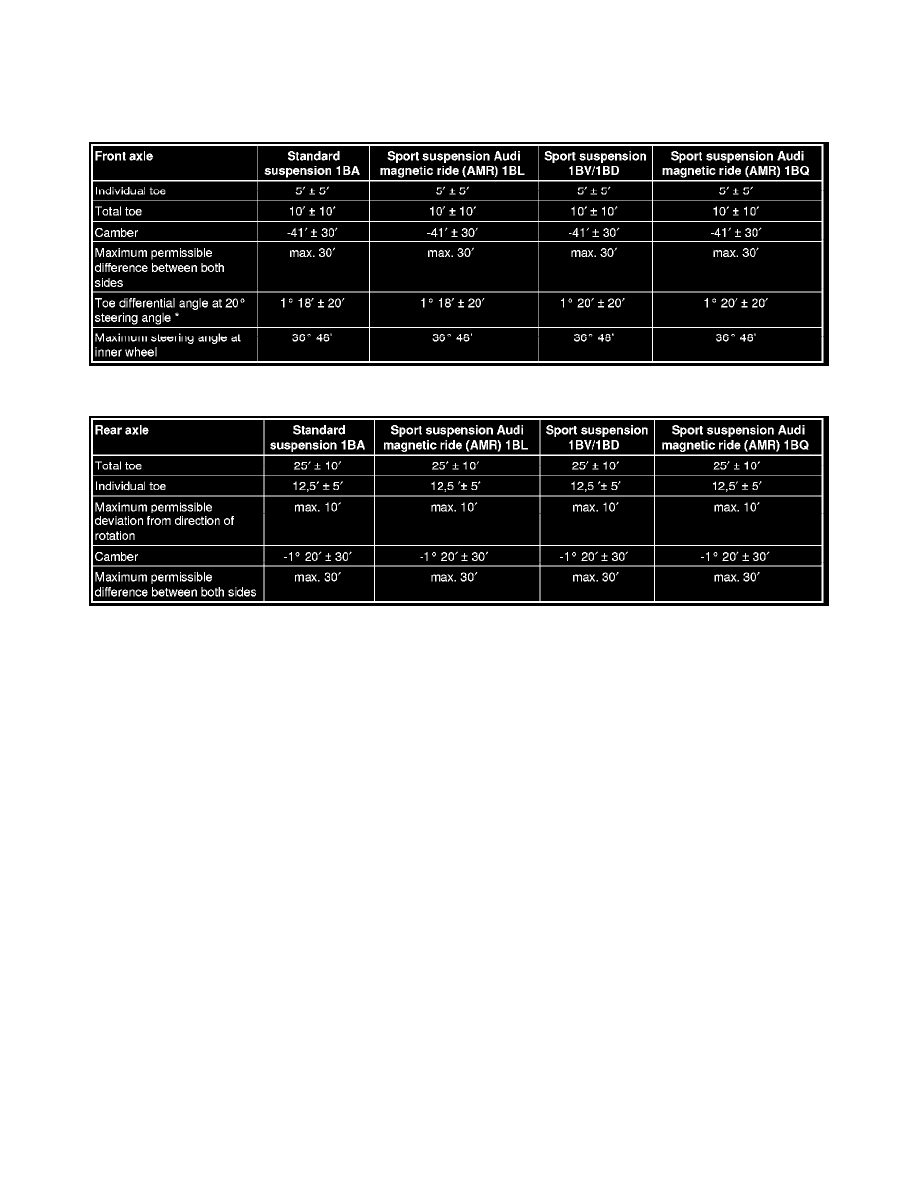

Vehicle Alignment Specified Values, Front and All Wheel Drive (Coupe/Roadster)

Specifications valid for all engine versions

*

 Wheel stop on outer wheel is reduced by this amount. It can also be indicated negatively in alignment computer, depending on manufacturer.
