Catera V6-3.0L VIN R (1997)
Steering Gear: Service and Repair
Installation

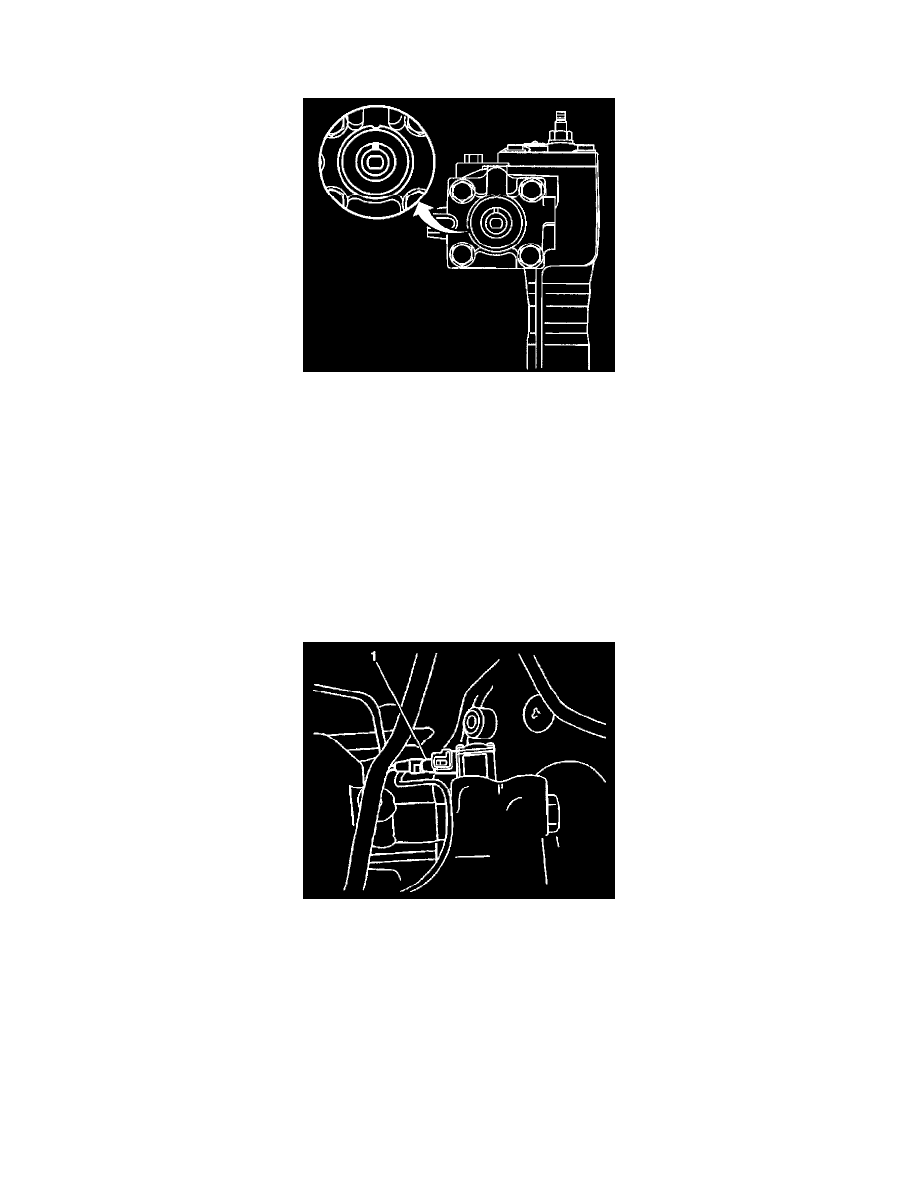

1. Rotate the stub shaft from stop to stop with an 8 mm (5/16 inch) open-end wrench counting the number of turns before installing on the vehicle.
2. Starting at either stop, turn the stub shaft back 1/2 the total number of turns.
3. Align the mark on the stub shaft to V mark on the steering gear case. This is the center of the gear.
4. Install steering gear.
5. Install the shim(s).
6. Install the upper steering gear bolt.
NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners
requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use
paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint
clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid
damage to parts and systems.
^
Tighten the upper steering gear bolt until snug. Tighten to final specifications will be done after the remaining bolts are installed.
7. Install the electrical connection (1) to the power steering fluid flow control valve actuator.
8. Install the heat shield.
9. Secure the heat shield with the upper heat shield bolt.
^
Tighten the upper heat shield bolt to 8 Nm (71 inch lbs.).
10. Raise and support the vehicle.
