Catera V6-3.0L VIN R (1997)

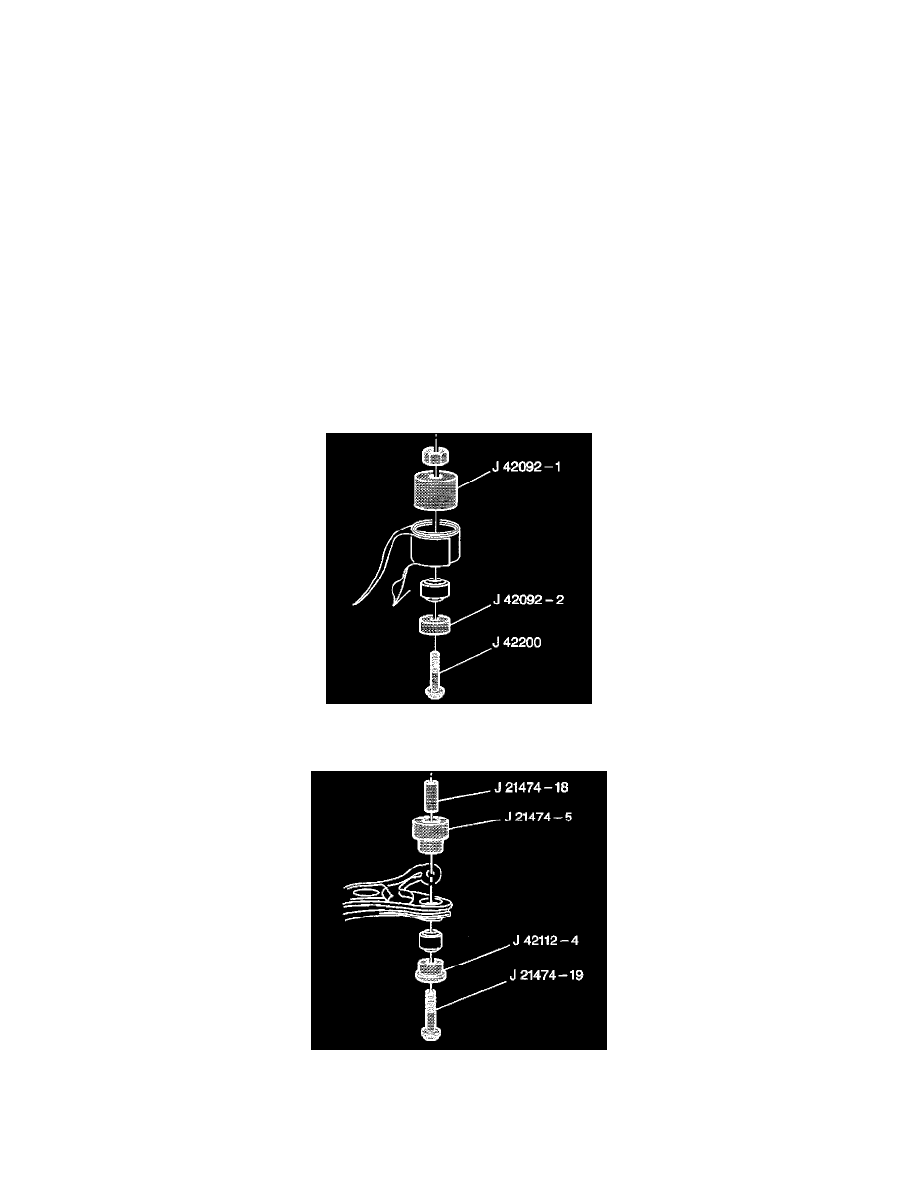

6. Use the following to press out the bushing:
^
Use a 30 mm socket.
^
Use the J 21474-01.
^
Use the J 42200.
INSTALLATION PROCEDURE
1. Coat the new bushings with lubricant to enable ease of installation.
2. Install the inboard side bushing with the collar toward the rear differential.

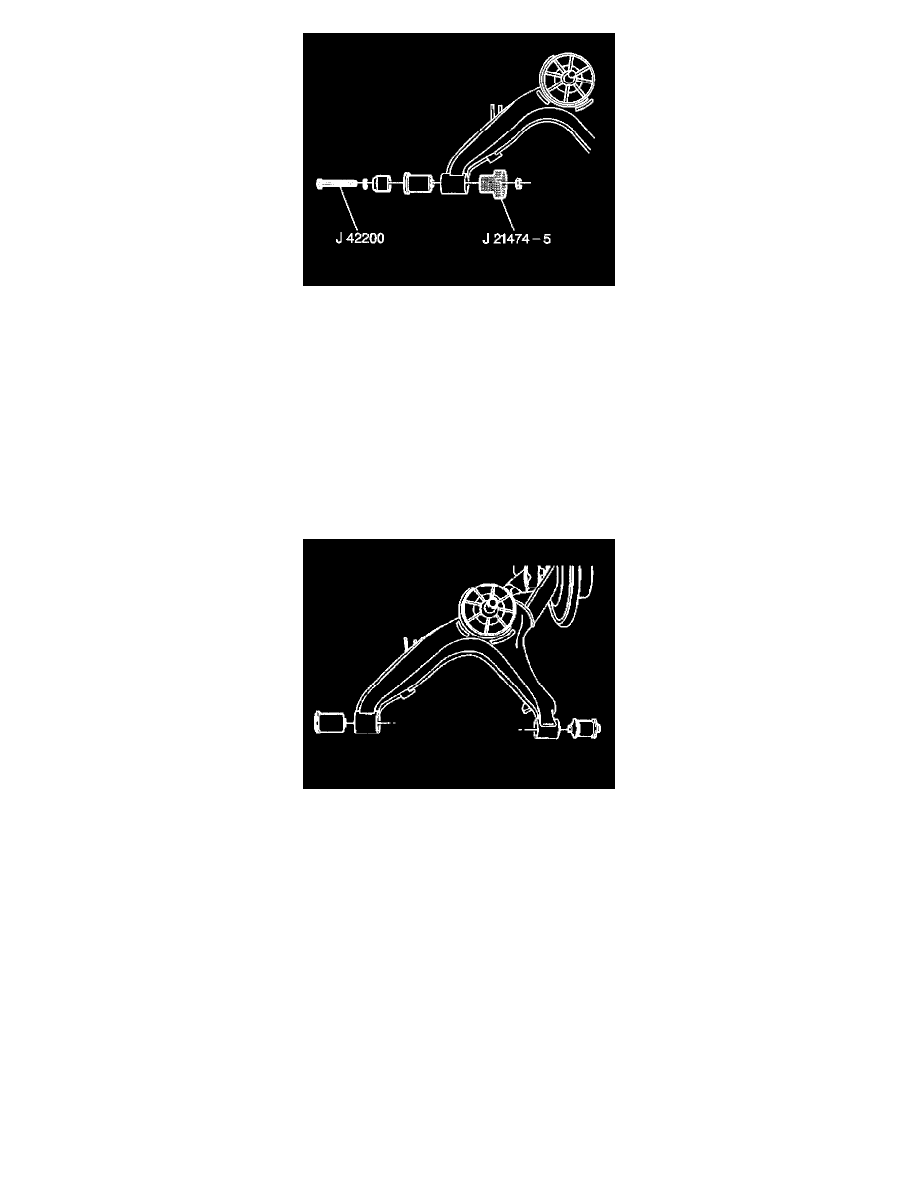

3. Use the following tools to press in the new bushing:
^
Use a 30 mm socket.
^
Use the J21474-5.
^
Use the J 42200.
4. Lubricate the outboard side bushing with silicone spring.
5. Install the outboard side bushing.
6. Use the following to press in the new bushing:
^
Use a 30 mm socket.
^
Use the J 21474-5.
^
Use the J 42200.
7. Install the rear axle lower control arm.
8. Install the tire and wheel assembly.
9. Lower the vehicle.
