Catera V6-3.0L VIN R (1997)

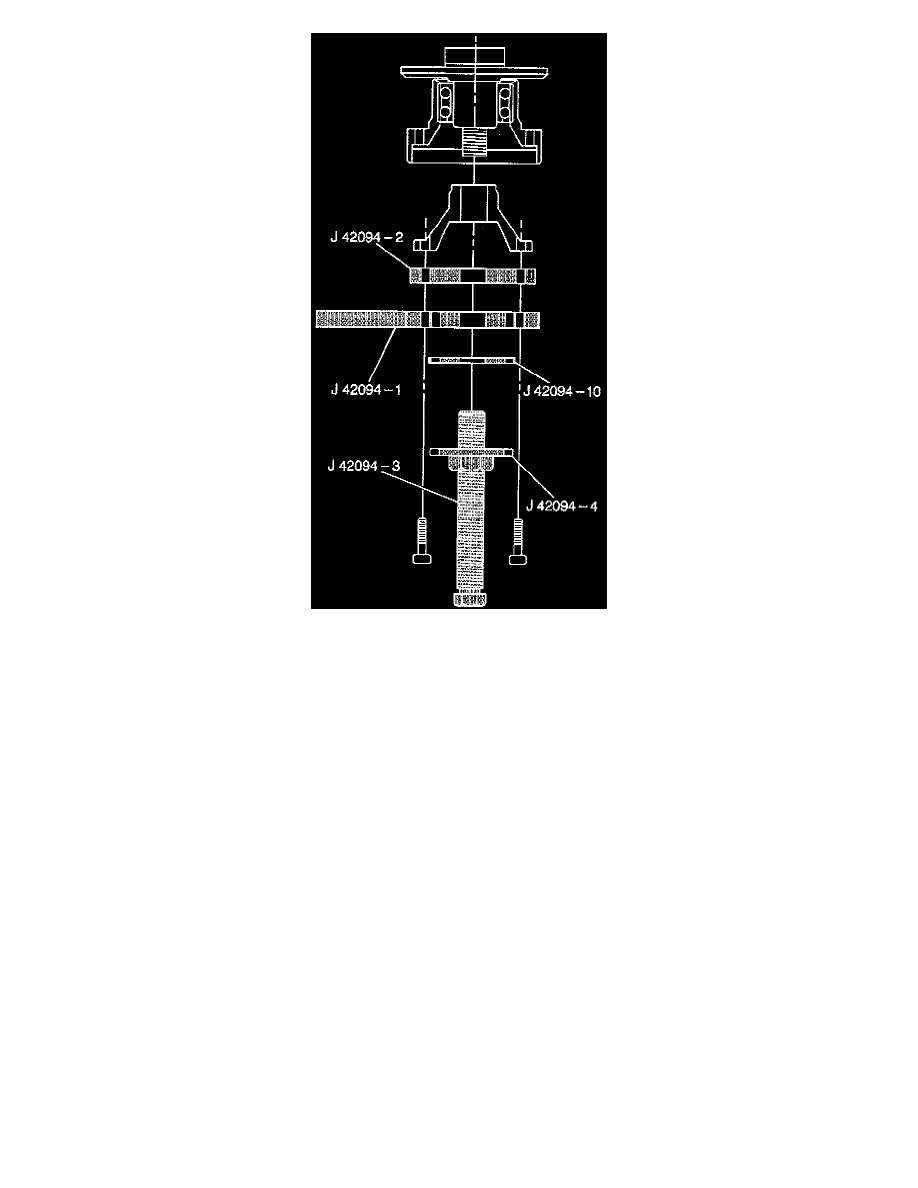

11. Use drive shaft bolts to connect the following special tools to the rear wheel flange:
^
Connect J 42094-4.
^
Connect J 42094-3.
^
Connect J 42094-1.
^
Connect J 42094-2.
^
Connect J 42094-10.
12. Install the rear wheel hub flange to the rear wheel hub. Ensure the splines are aligned properly.
13. Press the rear wheel hub flange fully onto the rear wheel hub by turning the J 42094-4 clockwise and counter-holding with the J 42094-3.
14. Remove the following special tools:
^
Remove the J 42094-4.
^
Remove the J 42094-3.
^
Remove the J 42094-10.
15. Leave the following special tools attached to the rear wheel flange:
^
Leave the J 42094-1 attached.
^
Leave the J 42094-2.
NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners
requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use
paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint
clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid
damage to parts and systems.
16. Install the rear wheel hub nut.
^
Tighten the rear wheel hub nut to 300 Nm (221 ft. lbs.).
17. Remove the following special tools after tightening the rear wheel hub nut:
^
Remove the J 42094-1.
^
Remove the J 42094-2.
