STS RWD V8-4.6L (2007)

Page 1
background image

Dimmer Switch: Diagrams

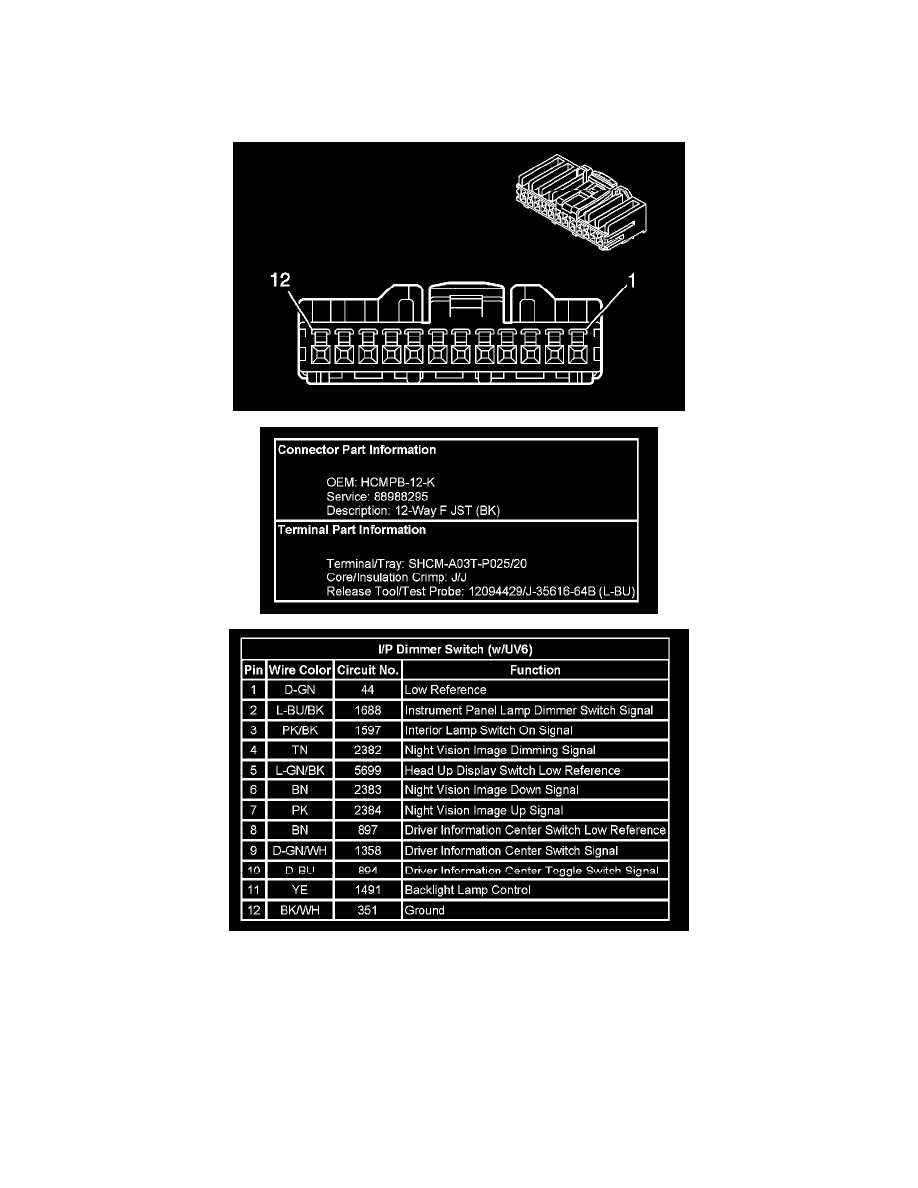

Displays and Gages Connector End Views

I/P Dimmer Switch (w/UV6)

I/P Dimmer Switch (w/o UV6)
