Fuse Block: Locations

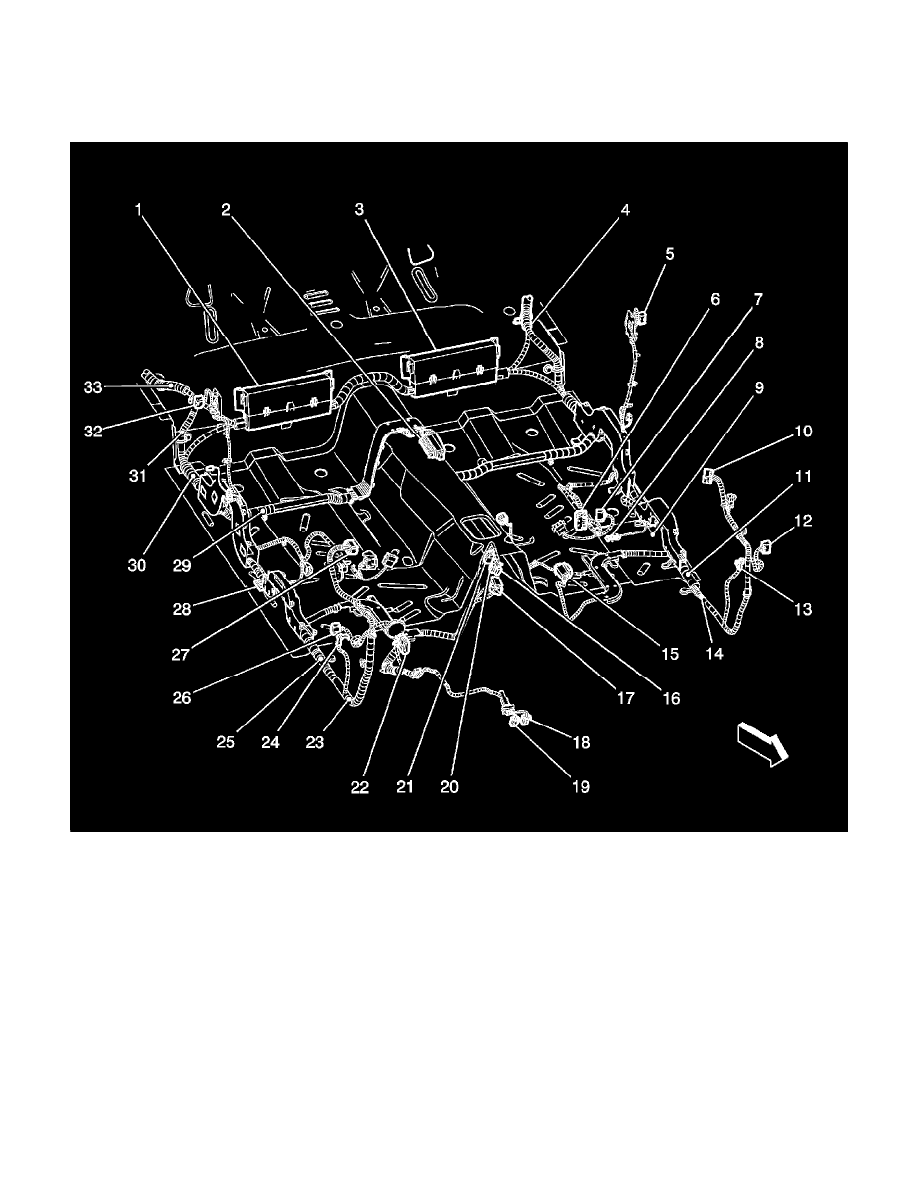

Power and Grounding Component Views
Body Harness - Front
1 - Fuse Block - RR
2 - G306
3 - Fuse Block - LR
4 - C302 (KA6)
5 - C700
6 - C300
7 - C301
8 - G307
9 - C205
10 - C205
11 - S207
12 - C500
13 - G200
14 - S205
15 - C204
16 - C206
17 - C201
