Pacifica V6-3.8L VIN L (2005)
Parking Brake Cable: Service and Repair
Rear
PARKING BRAKE CABLE LEFT REAR
REMOVAL
1) Lock out automatic adjuster in parking brake lever.
2) Raise and support vehicle.
NOTE: It may be necessary to back off parking brake shoe adjustment to allow sufficient slack to disengage cable buttons from connectors in
following step.
3) Slide left rear cable button inboard and remove from equalizer (Fig. 70).
4) Access and remove rear hub and bearing.

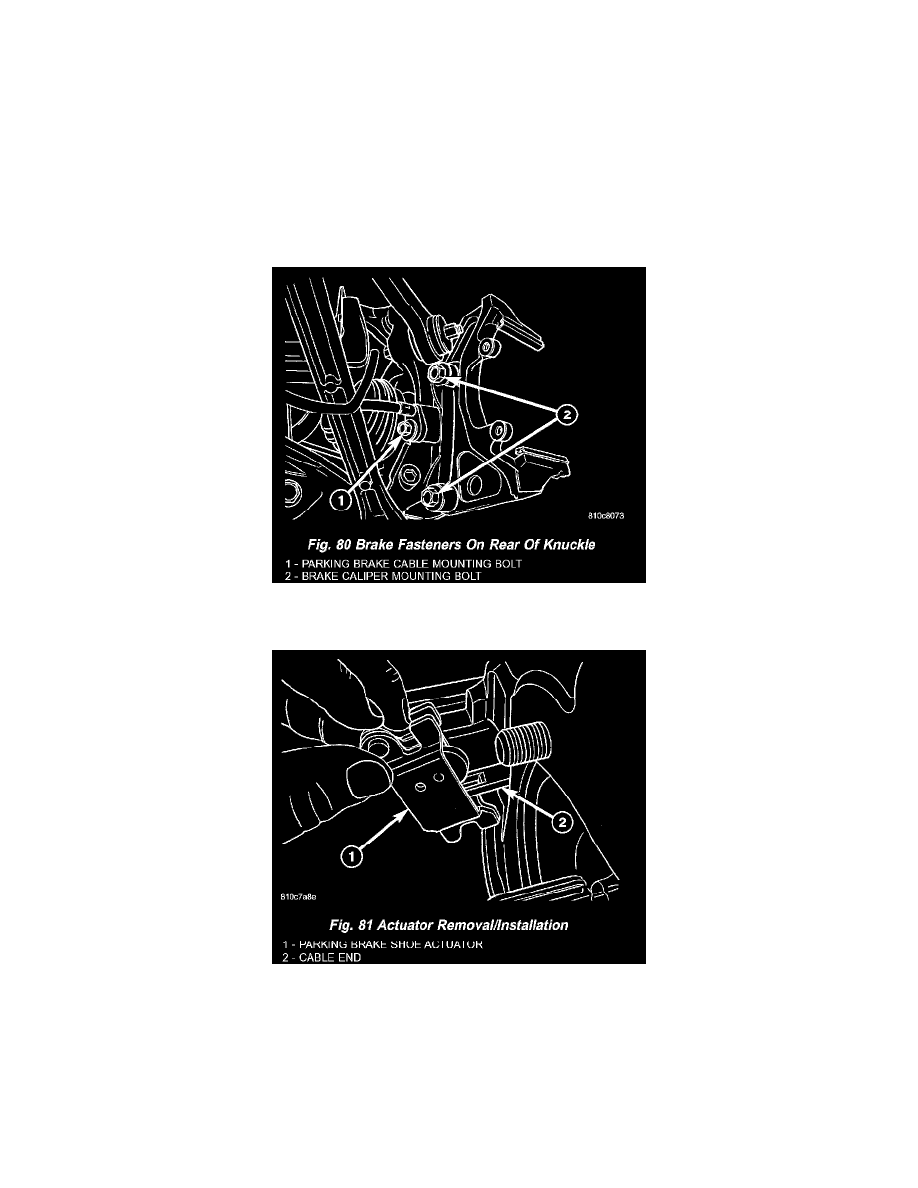

5) Remove parking brake cable bolt at knuckle (Fig. 80).
6) Remove parking brake shoes from support.
7) Remove shoe actuator from end of cable and support (Fig. 81).
8) Pull cable out of support plate and knuckle.
