Pacifica V6-3.8L VIN L (2005)

Page 1
background image

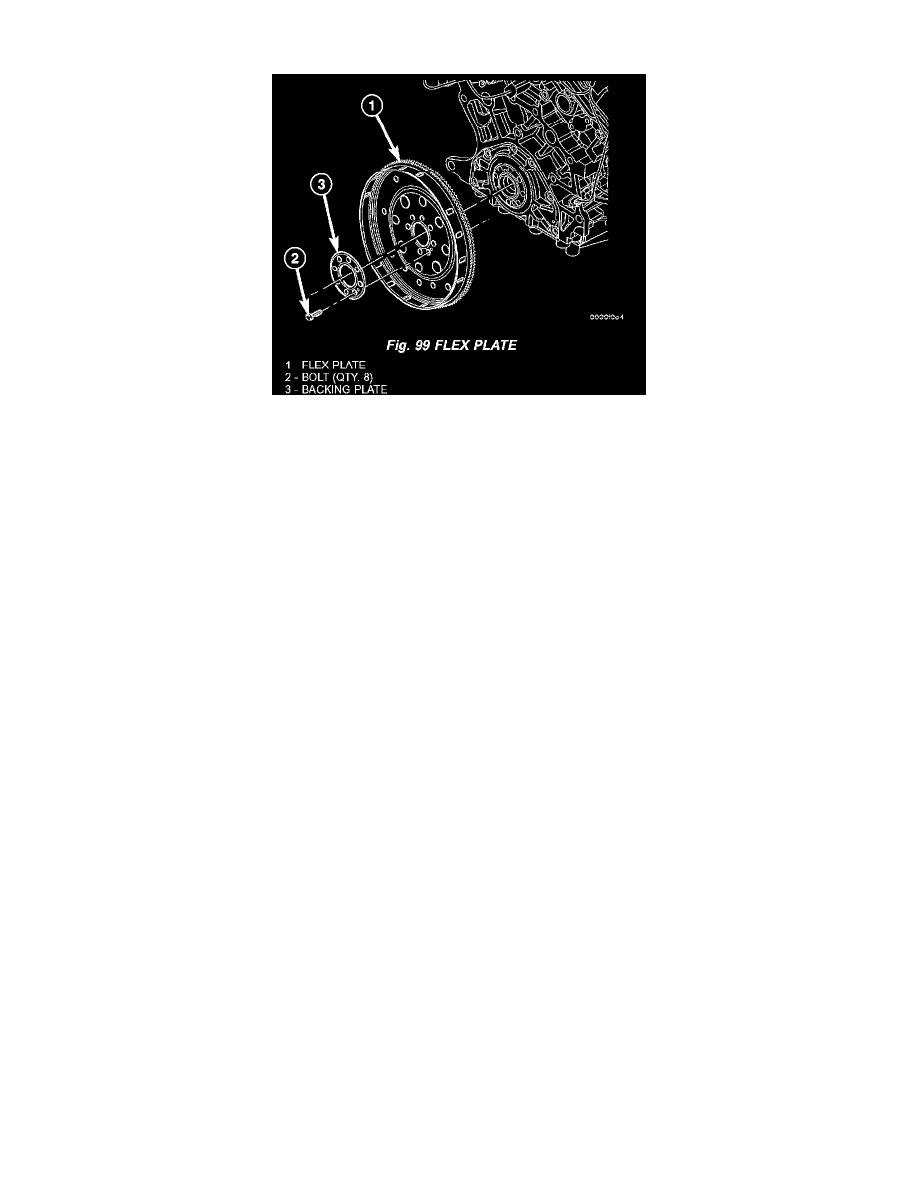

Flex Plate: Specifications

Flex plate to Crankshaft ............................................................................................................................................................................  95 Nm (70 ft. lbs.)
Flex plate to Torque Converter .................................................................................................................................................................  75 Nm (55 ft. lbs.)
