REAR SWING DOOR

Description 7020E

The assymetrical rear doors may be windowless or glazed according to the outfit. The door structures are identical.

Each door is secured to the pillar by two hinges on the outside. Then hinges allow a 90° book-type opening and incorporate a detent that can be automatically released to allow an 180° opening. When the doors are closed, the door detent re-engages automatically.

The central catches engage on the roof at the top and on the floor at the bottom.

The left door incorporates the third brake light, number plate holder and the central opening and closure handle.

An inner handle on the right door is used to open and close the door after opening the left door.

The glazed doors feature two large windows bonded to the structure by means of a polyurethane adhesive. The windows are tinted with solid and stippled black screen printing. A demisting device is built into the area swept by the wiper blade.

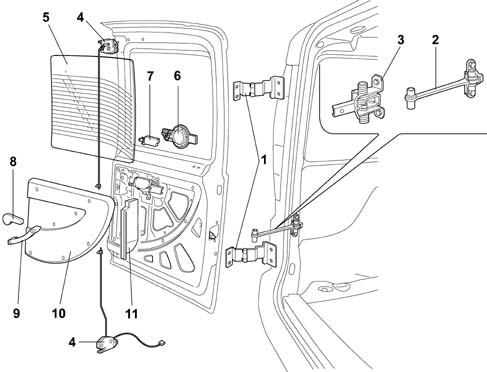

Exploded view of assymetrical doors

1, Fastening hinges

2, Door opening limiter

3, Door opening limiter housing

4, Catches

5, Catch control link

6, Exterior door opening handle

7, Door lock device

8, Interior door opening handle

9, Interior grab handle

10, Interior panel rear door

11, Theft-proof guard
