SLIDING SIDE DOOR

Description 7020C

The side door is manufactured using conventional pressing processes and includes a sliding opening and closure system with three anchorage points. Passive safety is assured by side impact bars.

The door is anchored and locked shut at the rear by means of a conventional central lock.

An electrical contact device located at the lower front of the door ensures a contact for the door open indicator and door safety lock when the door is closed.

The glazed door window includes two panes that slide over one another and are anchored in the middle to close.

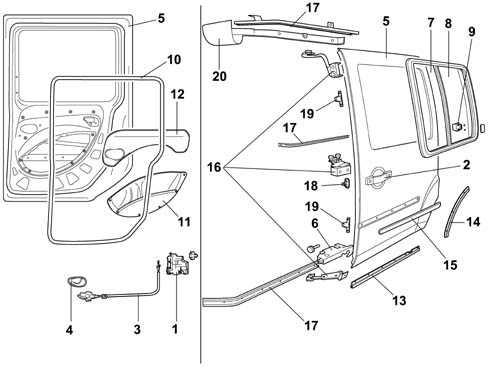

1, Lock

2, Outer handle

3, Interior door opening link

4, Interior handle and safey device

5, Door frame

6, Door open limiter and lock

7, Fixed window glass

8, Sliding window glass

9, Device for locking sliding glass open

10, Door compartment seal

11, Interior door panel

12, Rear door pouch

13, Lower seal

14, Rear seal

15, Exterior sliding door moulding

16, Anchorage devices

17, Sliding mount guides

18, Safety pin

19, Sliding door locating pins

20, Upper guide cover

ADJUSTMENT

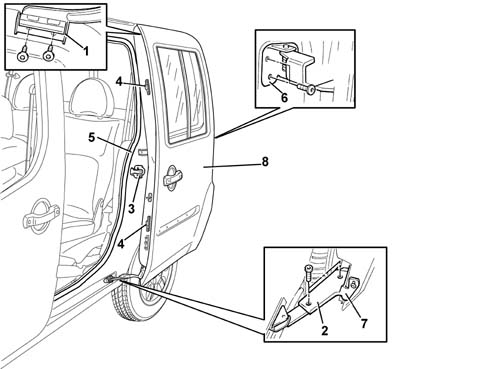

The right or left sliding side door (8) incorporates slots in anchorage points (1), (2), (6) and (7) for adjusting gaps and seal loads.

At the top, upper device (1) and lower device (2) allow load on door compartment seal (5) to be increased or decreased. Before adjusting these devices, loosen locating pins (4) at the front.

To increase the load on seal (5) at the rear of the door, adjust lock striker (3) secured to the pillar.

Lower slide (7) allows vertical adjustment of the front part. Central slide (6) allows vertical adjustment of the rear part.

It is advisable to adjust only one device at a time and also to tighten the fastenings to the recommended torque before going on to the next adjustment.

1, Upper anchorage device

2, Lower anchorage device

3, Lock striker

4, Locating pins

5, Seal

6, Rear anchorage device

7, Lower anchorage device on the door

8, Sliding side door
