Rear bumper - side element

Operation 7210E68 · External parts

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL · Cargo trim level

Removing

1. Remove panel (1a) by undoing retaining studs (1b).

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL · Doblò trim level

Op. 7040H80 REAR PARCEL SHELF - R.R.

Op. 7040H86 REAR PARCEL SHELF SUPPORTS - R.R.

If the bumper is body-coloured, take care not to damage the paint.

1. Undo retaining bolt (1a) positioned inside the vehicle beneath the parcel rack mount, and bolts (1b), and remove bumper (1c).

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Refitting

Check that the bumper is undamaged.

Touch up the paintwork if necessary.

Fit the bumper and secure using the bolts.

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL · Cargo trim level

Fit the panel and secure by means of the studs.

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL · Doblò trim level

Op. 7040H80 REAR PARCEL SHELF - R.R.

Op. 7040H86 REAR PARCEL SHELF SUPPORTS - R.R.

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Removing

Turn the ignition key to the OFF position.

Lift the bonnet

Disconnect the negative battery terminal.

Op. 7040H80 REAR PARCEL SHELF - R.R.

Op.

If the bumper is car-coloured, take care not to damage the paintwork.

1. Unscrew bolt (1a) located inside the vehicle under the parcel rack and bolts (1b).

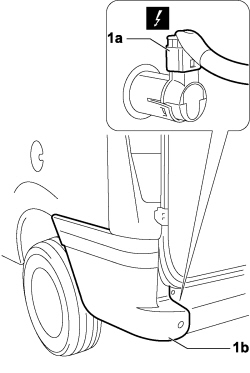

1. Disconnect electrical connection (1a) from the parking obstacle detection sensor and remove bumper (1b) from the vehicle.

Refitting

Check that the bumper is not damaged.

If necessary, retouch the paintwork.

Connect the electrical connection to the parking obstacle detection sensor.

Fit the bumper and secure it using the bolts.

Op.

Op. 7040H80 REAR PARCEL SHELF - R.R.

Connect the negative battery terminal.
