F015 left fog light

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Exterior lights › F015 left fog light

Connectors and pin-outsF015 left fog light

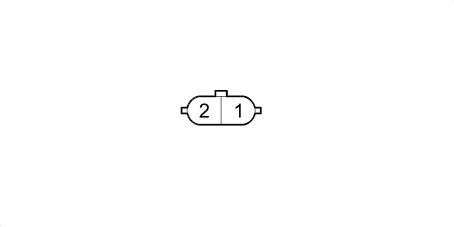

F015 LEFT FOG LIGHT

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	H		See B001B JUNCTION UNIT (FRONT)	4
2	1	N		See C010 LEFT FRONT EARTH	14
