C010 left front earth

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Earths › C010 left front earth

Connectors and pin-outsC010 left front earth

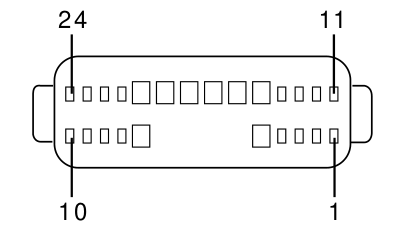

C010 LEFT FRONT EARTH

1.4 8v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005, Right hand drive

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	N		See P005B SINGLE-TONE HORN (FRONT)	1
3	0,5	N		See F011 RIGHT HEADLAMP	8
4	0,5	N		See F010 LEFT HEADLAMP	8
5	1	N		See F011 RIGHT HEADLAMP	5
6	1	N		See F010 LEFT HEADLAMP	5
7	0,35	NV		See B001B JUNCTION UNIT (FRONT)	26
9	0,5	N		See I031 CLUTCH PEDAL SWITCH	2
10	0,5	N		See K010 FOUR STAGE PRESSURE SWITCH	6
11	0,35	NV		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
13	1	N		See F016 RIGHT FOG LIGHT	2
14	1	N		See F015 LEFT FOG LIGHT	2
15	2,5	N		See D008A FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	C
16	2,5	N		See H005A STEERING COLUMN SWITCH UNIT (FRONT)	7
18	2,5	N		See N015 WINDSCREEN WIPER MOTOR	5
21	0,35	NV		See D008B FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	B
22	1	N		See D004A FRONT/ENGINE JUNCTION (FRONT)	F

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	N		See P005B SINGLE-TONE HORN (FRONT)	1
3	0,5	N		See F011 RIGHT HEADLAMP	8
4	0,5	N		See F010 LEFT HEADLAMP	8
5	1	N		See F011 RIGHT HEADLAMP	5
6	1	N		See F010 LEFT HEADLAMP	5
7	0,35	NV		See B001B JUNCTION UNIT (FRONT)	26
9	0,5	N		See I031 CLUTCH PEDAL SWITCH	4
10	0,5	N		See K010 FOUR STAGE PRESSURE SWITCH	6
11	0,35	NV		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
13	1	N		See F016 RIGHT FOG LIGHT	2
14	1	N		See F015 LEFT FOG LIGHT	2
15	2,5	N		See D008A FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	C
16	2,5	N		See H005A STEERING COLUMN SWITCH UNIT (FRONT)	7
18	2,5	N		See N015 WINDSCREEN WIPER MOTOR	5
21	0,35	NV		See D008B FRONT/AIR CONDITIONING - HEATER COUPLING (FRONT)	B
22	1	N		See D004A FRONT/ENGINE JUNCTION (FRONT)	F

C10 – Front

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	N		See P5B SINGLE-TONE HORN ( FRONT )	1
3	1	N		See F010 LEFT HEADLAMP
4	1	N		See F010 LEFT HEADLAMP
5	1	N		See F011 RIGHT HEADLAMP
6	1	N		See F011 RIGHT HEADLAMP
7		NV		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	26
9		N		See I31 CLUTCH PEDAL SWITCH ( FRONT )	2
10		NV		See K010 FOUR STAGE PRESSURE SWITCH	6
11		NV		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
15		N		See D8A FRONT/AIR CONDITIONING - HEATER COUPLING ( FRONT )
16		N		See H5A STALK UNIT ( FRONT )	7
18		N		See N015 WINDSCREEN WIPER MOTOR	5
21		NV		See D8B FRONT/AIR CONDITIONING - HEATER COUPLING ( AIR CONDITIONING )
22	1	N		See D4A FRONT/ENGINE COUPLING ( FRONT )

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	N		See P5B SINGLE-TONE HORN ( FRONT )	1
3	1	N		See F010 LEFT HEADLAMP
4	1	N		See F010 LEFT HEADLAMP
5	1	N		See F011 RIGHT HEADLAMP
6	1	N		See F011 RIGHT HEADLAMP
7		NV		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	26
9		N		See I31 CLUTCH PEDAL SWITCH ( FRONT )	4
10		NV		See K010 FOUR STAGE PRESSURE SWITCH	6
11		NV		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
15		N		See D8A FRONT/AIR CONDITIONING - HEATER COUPLING ( FRONT )
16		N		See H5A STALK UNIT ( FRONT )	7
18		N		See N015 WINDSCREEN WIPER MOTOR	5
21		NV		See D8B FRONT/AIR CONDITIONING - HEATER COUPLING ( AIR CONDITIONING )
22	1	N		See D4A FRONT/ENGINE COUPLING ( FRONT )
