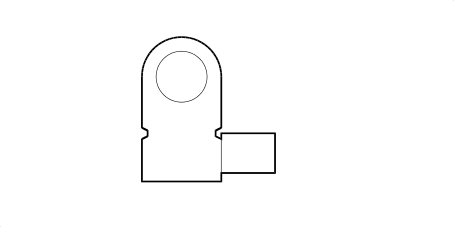

C001 BATTERY EARTH

1.3 JTD 16V · from 12/03 · MY 2005

Wiring	Colour
See 51 INJECTION BRIDGE / ENGINE SERVICES	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	1
				See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	2
				See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	3
				See M015A PLUG PREHEATING CONTROL UNIT (INJECTION BRAID / ENGINE SERVICES)	1
				See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	11
				See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	4

1.4 8v, 1.6 16v · from 12/03 · BIPOWER, Climate control system, MY 2005

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See N011 ENGINE FAN MOTOR - 1	1

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Climate control system, MY 2005

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See N012 ENGINE FAN MOTOR - 2	2

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See N011 ENGINE FAN MOTOR - 1	2

1.4 8v, 1.6 16v · from 12/03 · MY 2005

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See N011 ENGINE FAN MOTOR - 1	2

1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Climate control system, MY 2005

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See J039 ENGINE COOLING FAN REMOTE CONTROL SWITCH	87

1.9 DIESEL

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N	x	See M15A HEATER PLUGS CONTROLUNIT ( ENGINE )	1
			x	See M15A HEATER PLUGS CONTROLUNIT ( ENGINE )	2
			x	See M010 ENGINE MANAGEMENT ECU	78
			x	See M010 ENGINE MANAGEMENT ECU	79

1.2 8v, 1.6 16v

Wiring	Colour
See 40 BATTERY NEGATIVE

Cable		Destination
Sec.	Colour	Node	Connect.	Pin
16	N	X	See C040 ENGINE EARTH
		X	See A1D BATTERY ( BATTERY NEGATIVE )

1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 40 BATTERY NEGATIVE

Cable		Destination
Sec.	Colour	Node	Connect.	Pin
30	N	X	See C040 ENGINE EARTH
		X	See A1D BATTERY ( BATTERY NEGATIVE )
