C015 dashboard earth, driver''s side
21 · General
C015 dashboard earth, driver''s side
Make
Fiat
Model
Doblò Factory Service Manual
Year
2000–2010
Section
Earths › C015 dashboard earth, driver''s side
Connectors and pin-outs C015 dashboard earth, driver''s side

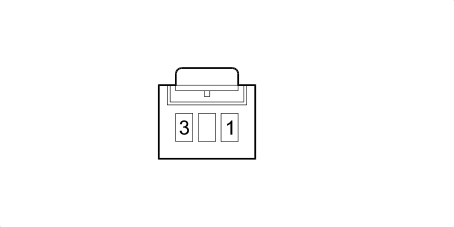

C015 DASHBOARD EARTH, DRIVER''S SIDE
C015A – Facia
1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005, Navigator
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA) 10 2 2,5 N See P020A RADIO (FACIA) 8 3 0,5 N See P020D RADIO (FACIA) 12 4 1,5 N See P051 ADDITIONAL CURRENT SOCKET 3 5 1,5 N See P050 CIGARETTE LIGHTER/POWER SOCKET 3 6 0,5 N X See J146 SEAT BELT BUZZER EXCLUSION REMOTE CONTROL SWITCH 3 See M048 SEAT BELTS CONTROL UNIT 1 7 0,5 N See H005C STEERING COLUMN SWITCH UNIT (FACIA) 5 10 0,5 NZ See M001D BODY COMPUTER (FACIA) 8 11 0,5 N See M001D BODY COMPUTER (FACIA) 9 12 0,35 NV See H090A SWITCH CONTROL UNIT (FACIA) 7
1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA) 10 2 2,5 N See P020A RADIO (FACIA) 8 3 0,5 N See D099 RADIO PHONE PREPARATION COUPLING 10 4 1,5 N See P051 ADDITIONAL CURRENT SOCKET 3 5 1,5 N See P050 CIGARETTE LIGHTER/POWER SOCKET 3 6 0,5 N X See J146 SEAT BELT BUZZER EXCLUSION REMOTE CONTROL SWITCH 3 See M048 SEAT BELTS CONTROL UNIT 1 7 0,5 N See H005C STEERING COLUMN SWITCH UNIT (FACIA) 5 8 1,5 N See H090C SWITCH CONTROL UNIT (FACIA) 2 9 1,5 NZ See H090C SWITCH CONTROL UNIT (FACIA) 8 10 0,5 NZ See M001D BODY COMPUTER (FACIA) 8 11 0,5 N See M001D BODY COMPUTER (FACIA) 9 12 0,35 NV See H090A SWITCH CONTROL UNIT (FACIA) 7
C015C – Rear
1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005
Wiring Colour See 25 REAR NERO
C15A – Facia
1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA ) 10 2 2,5 N See P20A CAR RADIO ( FACIA ) 8 3 0,5 N See P20D CAR RADIO ( FACIA ) 12 4 1,5 N See P51 DASHBOARD POWER SOCKET ( FACIA ) 3 5 1,5 N See P050 CIGARETTE LIGHTER/POWER SOCKET 3 6 0,5 N See D75 RADIO PHONE JUNCTION ( FACIA ) 10 7 0,5 N See H5C STALK UNIT ( FACIA ) 5 8 1,5 N See H90C SWITCH CONTROL UNIT ( FACIA ) 2 9 1,5 NZ See H90C SWITCH CONTROL UNIT ( FACIA ) 8 10 0,5 NZ See M1D BODY COMPUTER ( FACIA ) 8 11 0,5 N See M1D BODY COMPUTER ( FACIA ) 9 12 0,35 NV See H90A SWITCH CONTROL UNIT ( FACIA ) 7
C15B – Facia
1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL
C15C – Rear
1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL
Wiring Colour See 25 REAR nero
