21 · General

P020 radio

Make: Fiat
Model: Doblò Factory Service Manual
Year: 2000–2010
Section: Various consumers › P020 radio

‹ Prev P005 single-tone horn Next › P025 aerial power supply

Connectors and pin-outsP020 radio

P020 RADIO

P020A – Facia

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005, Navigator

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	5
3	0,5	BV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	17
4	1,5	CV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	3
5	1	H		See D097D SHORT CIRCUITING COUPLING (FACIA)	9
6	0,5	GV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	12
7	1,5	RN		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	7
8	2,5	N		See C015A FACIA EARTH, DRIVER'S SIDE (FACIA)	2

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	5
3	0,5	BV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	17
4	1,5	CV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	3
5	1	H		See P025 AERIAL POWER SUPPLY	1
6	0,5	GV		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	12
7	1,5	RN		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	7
8	2,5	N		See C015A FACIA EARTH, DRIVER'S SIDE (FACIA)	2

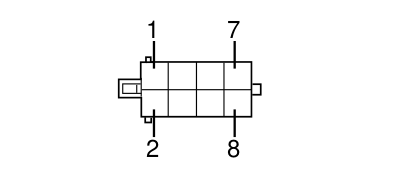

P020B – Facia

1.4 8v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Doblò trim level, MY 2005, Right hand drive

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B1	1,5	HG		See D020A FACIA/REAR JUNCTION (FACIA)	8
B2	1,5	NL		See D020A FACIA/REAR JUNCTION (FACIA)	9
B3	1,5	RN		See D097B SHORT CIRCUITING COUPLING (FACIA)	4
B4	1,5	BN		See D097B SHORT CIRCUITING COUPLING (FACIA)	1
B5	1,5	SN		See D097D SHORT CIRCUITING COUPLING (FACIA)	4
B6	1,5	NZ		See D097D SHORT CIRCUITING COUPLING (FACIA)	1
B7	1,5	CN		See D020A FACIA/REAR JUNCTION (FACIA)	6
B8	1,5	CV		See D020A FACIA/REAR JUNCTION (FACIA)	7

1.4 8v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Cargo trim level, MY 2005, Right hand drive

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B3	1,5	RN		See D097B SHORT CIRCUITING COUPLING (FACIA)	4
B4	1,5	BN		See D097B SHORT CIRCUITING COUPLING (FACIA)	1
B5	1,5	SN		See D097D SHORT CIRCUITING COUPLING (FACIA)	4
B6	1,5	NZ		See D097D SHORT CIRCUITING COUPLING (FACIA)	1

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Doblò trim level, MY 2005, Navigator

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	HG		See D020A FACIA/REAR JUNCTION (FACIA)	8
2	1,5	NL		See D020A FACIA/REAR JUNCTION (FACIA)	9
3	1,5	M		See D097D SHORT CIRCUITING COUPLING (FACIA)	4
4	1,5	NZ		See D097D SHORT CIRCUITING COUPLING (FACIA)	1
5	1,5	RN		See D097B SHORT CIRCUITING COUPLING (FACIA)	4
6	1,5	BN		See D097B SHORT CIRCUITING COUPLING (FACIA)	1
7	1,5	CN		See D020A FACIA/REAR JUNCTION (FACIA)	6
8	1,5	CV		See D020A FACIA/REAR JUNCTION (FACIA)	7

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · Cargo trim level, MY 2005

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	1,5	M		See D097D SHORT CIRCUITING COUPLING (FACIA)	4
4	1,5	NZ		See D097D SHORT CIRCUITING COUPLING (FACIA)	1
5	1,5	RN		See D097B SHORT CIRCUITING COUPLING (FACIA)	4
6	1,5	BN		See D097B SHORT CIRCUITING COUPLING (FACIA)	1

P020C – Facia

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7	0,35	BL		See D099 RADIO PHONE PREPARATION COUPLING	4
8	0,35	BN		See D099 RADIO PHONE PREPARATION COUPLING	3
9	0,35	BV		See D099 RADIO PHONE PREPARATION COUPLING	1

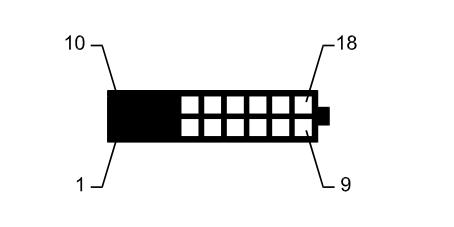

P020D – Facia

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	0,5	GV	X	See J146 SEAT BELT BUZZER EXCLUSION REMOTE CONTROL SWITCH	1
				See D020A FACIA/REAR JUNCTION (FACIA)	12
9	0,5	HV		See D020A FACIA/REAR JUNCTION (FACIA)	13
11	0,5	VN	X	See M048 SEAT BELTS CONTROL UNIT	4
				See M001E BODY COMPUTER (FACIA)	23
12	0,5	N		See C015A FACIA EARTH, DRIVER'S SIDE (FACIA)	3
15	0,5	LV		See B002F JUNCTION UNIT UNDER DASHBOARD (FACIA)	8
18	0,5	GN		See D020A FACIA/REAR JUNCTION (FACIA)	14

P20A – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	5
3	0,5	BV		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	17
4	1,5	CV		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	3
6	0,5	GV		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	12
5		H		See P25 AERIAL FEEDER/AMPLIFIER ( FACIA )	1
7	1,5	RN		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	7
8	2,5	N		See C15A FACIA EARTH, DRIVER'S SIDE ( FACIA )	2

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	5
3	0,5	BV		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	17
4	1,5	CV		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	3
5		H		See P25 AERIAL FEEDER/AMPLIFIER ( FACIA )	1
7	1,5	RN		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	7
8	2,5	N		See C15A FACIA EARTH, DRIVER'S SIDE ( FACIA )	2

P20B – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		See D20 DASHBOARD/REAR COUPLING ( REAR )
2	1,5	AR		See D20 DASHBOARD/REAR COUPLING ( REAR )
3	1,5	SN		See D97D SHORT CIRCUITING COUPLING ( FACIA )	4
4	1,5	NZ		See D97D SHORT CIRCUITING COUPLING ( FACIA )	1
5	1,5	RN		See D97B SHORT CIRCUITING COUPLING ( FACIA )	4
6	1,5	BN		See D97B SHORT CIRCUITING COUPLING ( FACIA )	1
7	1,5	CN		See D20 DASHBOARD/REAR COUPLING ( REAR )
8	1,5	CV		See D20 DASHBOARD/REAR COUPLING ( REAR )

P20C – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7	2430555555555,56	BL		See D75 RADIO PHONE JUNCTION ( FACIA )	4
8	2430555555555,56	BN		See D75 RADIO PHONE JUNCTION ( FACIA )	3
9	2430555555555,56	BV		See D75 RADIO PHONE JUNCTION ( FACIA )	1

P20D – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	0,5	B		See D20 DASHBOARD/REAR COUPLING ( REAR )
9	0,5	HV		See D20 DASHBOARD/REAR COUPLING ( REAR )
11	0,5	VN		See M1E BODY COMPUTER ( FACIA )	23
12	0,5	N		See C15A FACIA EARTH, DRIVER'S SIDE ( FACIA )	3
15	0,5	LV		See B2F JUNCTION UNIT UNDER DASHBOARD ( FACIA )	8
18	0,5	GN		See D20 DASHBOARD/REAR COUPLING ( REAR )
