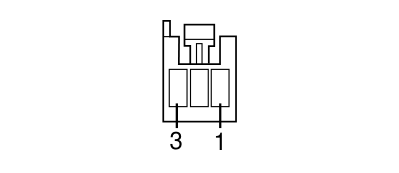

P051 ADDITIONAL POWER SOCKET

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GV		See B002F JUNCTION UNIT UNDER DASHBOARD (FACIA)	9
2	1,5	RN	X	See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	9
				See P050 CIGARETTE LIGHTER/POWER SOCKET	2
3	1,5	N		See C015A FACIA EARTH, DRIVER'S SIDE (FACIA)	4

P51 – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GV		See B2F JUNCTION UNIT UNDER DASHBOARD ( FACIA )	9
2	1,5	RN	x	See P51 DASHBOARD POWER SOCKET ( FACIA )	2
			x	See P050 CIGARETTE LIGHTER/POWER SOCKET	2
3	1,5	N		See C15A FACIA EARTH, DRIVER'S SIDE ( FACIA )	10
