P092 subwoofer

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Various consumers › P092 subwoofer

Connectors and pin-outsP092 subwoofer

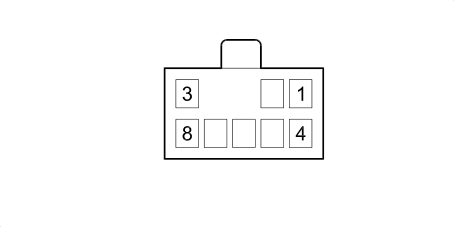

P092 SUBWOOFER

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CN		See D097C SHORT CIRCUITING COUPLING (REAR)	7
2	1,5	AG		See D097E SHORT CIRCUITING COUPLING (REAR)	1
3	1,5	BN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	13
4	1,5	CV		See D097E SHORT CIRCUITING COUPLING (REAR)	4
5	1,5	AR		See D097E SHORT CIRCUITING COUPLING (REAR)	7
7	1,5	N		See C030 LEFT REAR EARTH	13
8	1	H		See D097E SHORT CIRCUITING COUPLING (REAR)	15
