P053 right heated rear windscreen

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Various consumers › P053 right heated rear windscreen

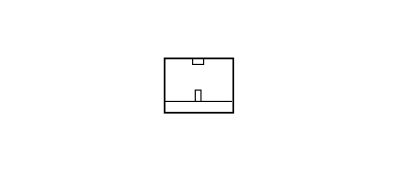

Connectors and pin-outsP053 right heated rear windscreen

P053 RIGHT HEATED REAR WINDSCREEN

P053A – Right swing door

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 38 RIGHT SWING DOOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See D085B TAILGATE REAR SEAL/ (RIGHT SWING DOOR)	B

P053B – Right swing door

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 38 RIGHT SWING DOOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	MB		See D085B TAILGATE REAR SEAL/ (RIGHT SWING DOOR)	A

P53 – Right door

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 38 RIGHT SWING DOOR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See D85B TAILGATE REAR SEAL/ ( RIGHT DOOR )	B
2	2,5	MB		A
