D069 seat bridges/rear coupling

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Intermediate couplings › D069 seat bridges/rear coupling

Connectors and pin-outsD069 seat bridges/rear coupling

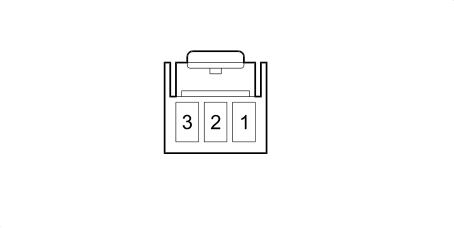

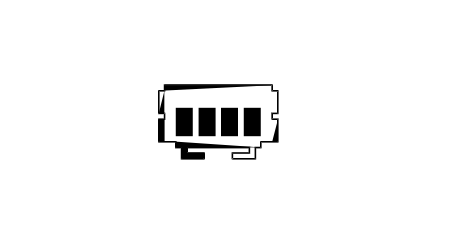

D069 SEAT BRIDGES/REAR COUPLING

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N		See C015C FACIA EARTH, DRIVER'S SIDE (REAR)	2
2	0,75	NV		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	4

Wiring	Colour
See 76 ELECTRIC SEATS	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N	X	See O040 LEFT SEAT HEATER	1
				See I065 DRIVER'S SEAT HEATING SWITCH	1
2	0,75	NV		See I065 DRIVER'S SEAT HEATING SWITCH	2

D69

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N	x	See O40 LEFT SEAT HEATER ( REAR )	1
				1
2	0,75	NV		2

D69 – Rear

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N		See C15A FACIA EARTH, DRIVER'S SIDE ( FACIA )	2
2	0,75	NV		See B2D JUNCTION UNIT UNDER DASHBOARD ( REAR )	4

D69 – Electric seats

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 76 ELECTRIC SEATS	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	N	x	See O40 LEFT SEAT HEATER ( REAR )	1
				1
2	0,75	NV		2
