21 · General

D006 front/rear coupling

Connectors and pin-outsD006 front/rear coupling

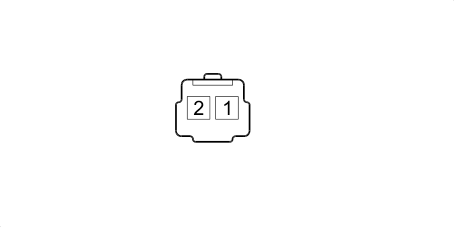

D006 FRONT/REAR COUPLING

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	N		See D004B FRONT/ENGINE JUNCTION (FRONT)	I
2	1	M		See D004B FRONT/ENGINE JUNCTION (FRONT)	J

1.6 16v · from 12/03 · BIPOWER, Cargo trim level, MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	M	X	See L060C METHANE SUPPLY SOLENOID (REAR)	2
				See N040 FUEL PUMP AND LEVEL GAUGE	3
				See L060B METHANE SUPPLY SOLENOID (REAR)	2
				See L060A METHANE SUPPLY SOLENOID (REAR)	2
				See I050 INERTIA SWITCH	3
2	1,5	N	X	See L060C METHANE SUPPLY SOLENOID (REAR)	1
				See L060B METHANE SUPPLY SOLENOID (REAR)	1
				See L060A METHANE SUPPLY SOLENOID (REAR)	1

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	M	X	See N040 FUEL PUMP AND LEVEL GAUGE	3
				See L060B METHANE SUPPLY SOLENOID (REAR)	2
				See L060A METHANE SUPPLY SOLENOID (REAR)	2
				See I050 INERTIA SWITCH	3
2	1,5	N	X	See L060B METHANE SUPPLY SOLENOID (REAR)	1
				See L060A METHANE SUPPLY SOLENOID (REAR)	1

1.6 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		See D4B FRONT/ENGINE COUPLING ( CONNECTORS )	J
2	1,5	N		See D4B FRONT/ENGINE COUPLING ( CONNECTORS )	I

1.6 16v

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M	X	See N040 FUEL PUMP AND LEVEL GAUGE	3
				See I50 INERTIA SWITCH ( REAR )	3
				See L60A METHANE SUPPLY SOLENOID ( REAR )	2
				See L60B METHANE SUPPLY SOLENOID ( REAR )	2
				See L60C METHANE SUPPLY SOLENOID ( REAR )	2
2	1,5	N	X	See L60A METHANE SUPPLY SOLENOID ( REAR )	1
				See L60B METHANE SUPPLY SOLENOID ( REAR )	1
				See L60C METHANE SUPPLY SOLENOID ( REAR )	1
