C050 air bag earth

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Earths › C050 air bag earth

Connectors and pin-outsC050 air bag earth

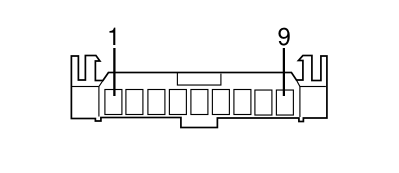

C050 AIR BAG EARTH

C050A – Facia

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
5	0,5	N		See Q011B AIR BAG IN DASHBOARD (PASSENGER SIDE) (FACIA)	1
6	0,5	NZ		See D001 FRONT/DASHBOARD COUPLING	1
7	0,5	N		See M060A AIR BAG CONTROL UNIT (FACIA)	16
8	0,5	BN		See D020B FACIA/REAR JUNCTION (FACIA)	2
9	0,5	NZ		See D020B FACIA/REAR JUNCTION (FACIA)	4

C050B – Rear

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N	X	See Q030 DRIVER'S SIDE BAG	3
				See Q031 PASSENGER SIDE BAG	3

C50 – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2430555555555,56	NV		See Q11B AIR BAG IN DASHBOARD (PASSENGER SIDE) ( FACIA )	1
1		GV		See M60A AIR BAG CONTROL UNIT ( FACIA )	11
