Q030 driver''s side bag

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Safety devices › Q030 driver''s side bag

Connectors and pin-outsQ030 driver''s side bag

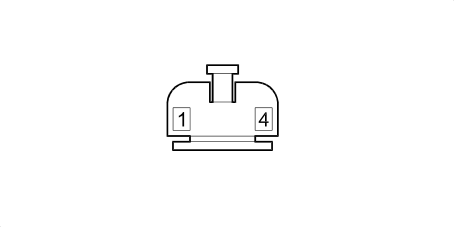

Q030 DRIVER''S SIDE BAG

1.4 8v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005, Right hand drive

Wiring	Colour
See 25 REAR	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HB		See M060B AIR BAG CONTROL UNIT (REAR)	22
2	0,5	VG		See M060B AIR BAG CONTROL UNIT (REAR)	21
3	0,5	N		See C050B AIR BAG EARTH (REAR)	1

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 25 REAR	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	Z		See M060B AIR BAG CONTROL UNIT (REAR)	24
2	0,5	R		See M060B AIR BAG CONTROL UNIT (REAR)	23
3	0,5	N		See C050B AIR BAG EARTH (REAR)	1

Q30 – Side bag

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 62 SIDE BAG

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	ZG		See D62 DRIVER'S SIDE BAG/REAR COUPLING ( REAR )	1
2	0,5	R		See D62 DRIVER'S SIDE BAG/REAR COUPLING ( REAR )	2
3	0,5	N		See D62 DRIVER'S SIDE BAG/REAR COUPLING ( REAR )	3
