C040 engine earth

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Earths › C040 engine earth

Connectors and pin-outsC040 engine earth

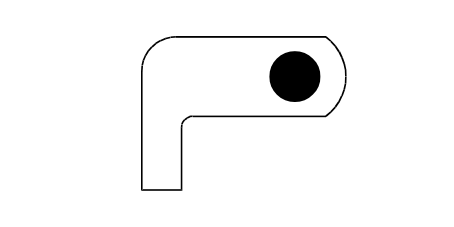

C040 ENGINE EARTH

1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M015A PLUG PREHEATING CONTROL UNIT (INJECTION BRAID / ENGINE SERVICES)	1
				See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	6
				See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	11
				See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	4
				See M010A ENGINE MANAGEMENT ECU (INJECTION BRAID / ENGINE SERVICES)	2
				See K101 FUEL TEMPERATURE AND WATER IN FUEL FILTER SENSOR	4

C040A – Engine

1.4 8v · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	21
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	5
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	6
				See M010B ENGINE MANAGEMENT ECU (ENGINE)	22

C040B – Engine

1.4 8v · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	N		See A030 IGNITION COIL	6

C40 – Battery negative

1.2 8v

Wiring	Colour
See 40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	N	X	See C1 BATTERY EARTH ( BATTERY NEGATIVE )
			X	See A1D BATTERY ( BATTERY NEGATIVE )

1.9 DIESEL

Wiring	Colour
See 40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	30	N	X	See C1 BATTERY EARTH ( BATTERY NEGATIVE )
			X	See A1D BATTERY ( BATTERY NEGATIVE )

C40A – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N	X	See M10B ENGINE MANAGEMENT ECU ( ENGINE )	5
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	6
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	21
				See M10B ENGINE MANAGEMENT ECU ( ENGINE )	22

C40B – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N	X	See A30A IGNITION 'COIL ( ENGINE )	2
				See A30B IGNITION 'COIL ( ENGINE )	2
				See A30C IGNITION 'COIL ( ENGINE )	2
				See A30D IGNITION 'COIL ( ENGINE )	2
