A030 ignition coil

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Starting - recharging › A030 ignition coil

Connectors and pin-outsA030 ignition coil

A030 IGNITION COIL

1.6 16v · from 12/03 · BIPOWER, MY 2005

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BZ		See M010B ENGINE MANAGEMENT ECU (ENGINE)	59
2	1,5	MB	X	See D081 INJECTOR COUPLING	3
				See B001F JUNCTION UNIT (INJECTION BRAID / ENGINE SERVICES)	18
				See J026 METHANE/LPG RELAY FEED	5
3	0,75	NV		See M010B ENGINE MANAGEMENT ECU (ENGINE)	66

1.4 8v · from 12/03 · MY 2005

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HG	X	See D081 INJECTOR COUPLING	3
				See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	1
2	0,75	BR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	17
3	0,75	GR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	19
4	0,75	BL		See M010B ENGINE MANAGEMENT ECU (ENGINE)	3
5	0,75	GH		See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
6	1,5	N		See C040B ENGINE EARTH (ENGINE)	1

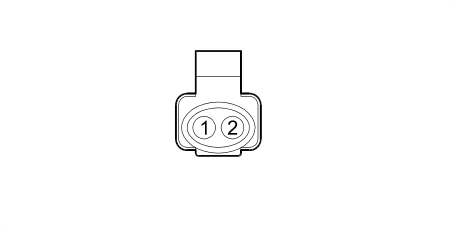

A30 – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BZ		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	59
2	1,5	MB	X	See D81 INJECTOR JUNCTION ( COILS AND FUEL INJECTORS )	3
				See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	18
				See J26 METHANE/LPG RELAY FEED ( ENGINE )	30
3	0,75	NV		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	66

A30A – Engine

1.2 8v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	MB	x	1
				See D4A FRONT/ENGINE COUPLING ( FRONT )
				See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	18
				See N70B INJECTOR ( ENGINE )	1
				See N70A INJECTOR ( COILS AND FUEL INJECTORS )	1
				See N70C INJECTOR ( ENGINE )	1
				See A30B IGNITION 'COIL ( ENGINE )	1
				See N70D INJECTOR ( COILS AND FUEL INJECTORS )	1
2	0,75	GN		See M10A ENGINE MANAGEMENT ECU ( ENGINE )	10

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BZ		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	17
2	0,75	NV	x	See C40B EARTH ON ENGINE ( ENGINE )	1
				See A30B IGNITION 'COIL ( ENGINE )	2
				See A30C IGNITION 'COIL ( ENGINE )	2
				See A30D IGNITION 'COIL ( ENGINE )	2
3	0,75	BL	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	31
				See A30B IGNITION 'COIL ( ENGINE )	3
				See A30C IGNITION 'COIL ( ENGINE )	3
				See A30D IGNITION 'COIL ( ENGINE )	3

A30B – Engine

1.2 8v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	MB	x	7
			x	See A30A IGNITION 'COIL ( ENGINE )	1
			x	See D4A FRONT/ENGINE COUPLING ( FRONT )
			x	See N70B INJECTOR ( ENGINE )	1
			x	See N70A INJECTOR ( COILS AND FUEL INJECTORS )	1
			x	See N70C INJECTOR ( ENGINE )	1
			x	See N70D INJECTOR ( COILS AND FUEL INJECTORS )	1
2	0,75	MN		See M10A ENGINE MANAGEMENT ECU ( ENGINE )	38

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	CN		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	19
2	0,75	NV	x	See C40B EARTH ON ENGINE ( ENGINE )	1
				See A30A IGNITION 'COIL ( ENGINE )	2
				See A30C IGNITION 'COIL ( ENGINE )	2
				See A30D IGNITION 'COIL ( ENGINE )	2
3	0,75	BL	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	31
				See A30A IGNITION 'COIL ( ENGINE )	3
				See A30C IGNITION 'COIL ( ENGINE )	3
				See A30D IGNITION 'COIL ( ENGINE )	3

A30C – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BM		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	3
2	0,75	NV	x	See C40B EARTH ON ENGINE ( ENGINE )	1
				See A30A IGNITION 'COIL ( ENGINE )	2
				See A30B IGNITION 'COIL ( ENGINE )	2
				See A30D IGNITION 'COIL ( ENGINE )	2
3	0,75	BL	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	31
				See A30A IGNITION 'COIL ( ENGINE )	3
				See A30B IGNITION 'COIL ( ENGINE )	3
				See A30D IGNITION 'COIL ( ENGINE )	3

A30D – Engine

1.6 16v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	CR		See M10B ENGINE MANAGEMENT ECU ( ENGINE )	1
2	0,75	NV	x	See C40B EARTH ON ENGINE ( ENGINE )	1
				See A30A IGNITION 'COIL ( ENGINE )	2
				See A30B IGNITION 'COIL ( ENGINE )	2
				See A30C IGNITION 'COIL ( ENGINE )	2
3	0,75	BL	X	See B1F ENGINE COMPARTMENT JUNCTION UNIT ( ENGINE )	31
				See A30A IGNITION 'COIL ( ENGINE )	3
				See A30B IGNITION 'COIL ( ENGINE )	3
				See A30C IGNITION 'COIL ( ENGINE )	3
