Aerial for alpha code - r r

Operation 5580E08 · Anti-theft device

Removing

Disconnect the battery negative terminal.

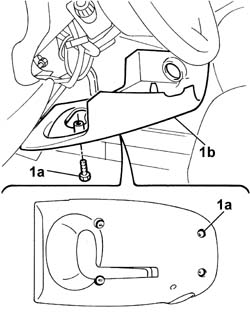

1. Undo the bolts (1a) and remove the steering column bottom trim (1b).

1. Remove the aerial (1a) from the ignition switch and disconnect the electrical connector (1b).

Refitting

Fit the ignition switch aerial and connect the electrical connector.

Fit the steering column bottom trim and secure it with the bolts.

Connect the battery negative terminal.
