INTRODUCTION - VACUUM AIR CIRCUIT

1.4 8v

SPECIFICATIONS

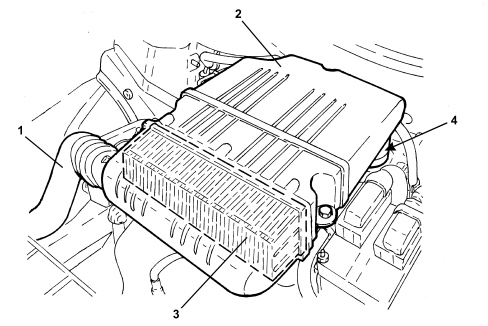

The air intake circuit is made up of various components that ensure the correct amount of air is conveyed to the engine under its various service conditions.

1. Cold air intake

2. Air filter assembly

3. Filter element

4. Intake manifold
