EngineVacuum air circuit
VACUUM AIR CIRCUIT

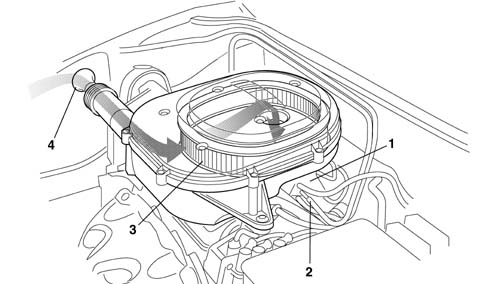

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.
1, Inlet manifold
2, Engine crankcase gas intake (see 1080)
3, Air filter
4, Intake vent
The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.
1, Inlet manifold
2, Resonator
3, Air filter
4, Intake vent
5, Throttle body
