Vehicle dimensions
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Project specifications and descriptions › Vehicle dimensions
SpecificationsVehicle dimensions

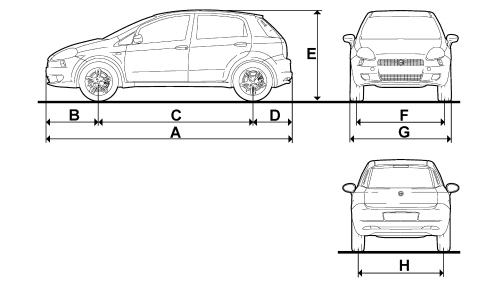

VEHICLE DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
| 1.2 8v | 1.4 8v | 1.4 16v | 1.3 Multijet | 1.9 Multijet | |
|---|---|---|---|---|---|
| A (mm) | 4030 | 4030 | 4030 | 4030 | 4030 |
| B (mm) | 875 | 875 | 875 | 875 | 875 |
| C (mm) | 2510 | 2510 | 2510 | 2510 | 2510 |
| D (mm) | 645 | 645 | 645 | 645 | 645 |
| E (mm) | 1490 | 1490 | 1490 | 1490 | 1490 |
| F (mm) | 1473 | 1473 | 1473 | 1473 | 1473 |
| G (mm) | 1687 | 1687 | 1687 | 1687 | 1687 |
| H (mm) | 1466 | 1466 | 1466 | 1466 | 1466 |
Small variations in size are possible depending on the dimensions of the rims
Luggage compartment capacity (V.D.A. standards): dm3 275
Luggage compartment volume (VDA standard) with backrest and back seat folded down: dm3 638
VAN versions
| Load carrying compartment | |
|---|---|
| Maximum length (mm) | 699 |
| Max width (mm) | 1034 |
| Width between wheel arches (mm) | 976 |
| Maximum height (mm) | 842 |
| Height of the load carrying plane from the ground (mm) | 754 |
| Volume of the load carrying compartment (dm3) | 268 |
