Vehicle dimensions
- Make
- Fiat
- Model
- Idea Factory Service Manual
- Year
- 2003–2012
- Section
- Project description and specifications › Vehicle dimensions
SpecificationsVehicle dimensions

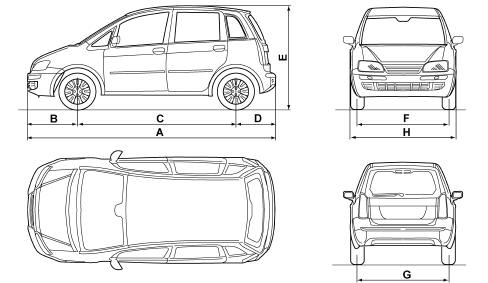

VEHICLE DIMENSIONS
| 1368 16V | 1248 JTD | |
|---|---|---|
| A (mm) | 3930 | 3930 |
| B (mm) | 794 | 794 |
| C (mm) | 2508 | 2508 |
| D (mm) | 628 | 628 |
| E (mm) | 1660 | 1660 |
| F (mm) | 1434 (*) | 1434 (*) |
| G (mm) | 1424 (*) | 1424 (*) |
| H (mm) | 1698 | 1698 |
(*) Depending on the dimensions of the wheel rims there may be small variations in the measurements
Luggage compartment capacity (V.D.A. standards): dm3 315
