Introduction - GEARBOX

Manual gearbox positioned transversely in the engine compartment, including 3 shafts supported by bearings with the gears always meshed and a final drive reduction. The twin cable external control is made from plastic materials with excellent properties (resistance to fatigue, self-lubrication capacity, reduced weight).

The following different types of gearboxes are adopted according to the engine type:

• C.514 5 speed gearbox for 1.2 16v and 1.4 16v;
• C.510 5 speed gearbox for 1.3 JTD;

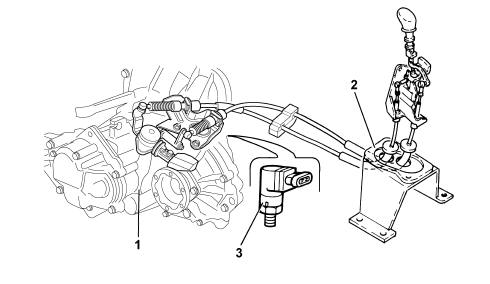

1, Manual gearbox with differential

2, Manual gearbox external controls

2, Speedometer sensor
