Supply PIPE from (pump) - master cylinder R.R.

Operation 1820B49 · HYDRAULIC CLUTCH SYSTEM

1.4 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B02 left front wheel r r

Proceed with removal - 7055B90 Left front WHEEL ARCH LINER - R.R.

Remove the cap on the bleed valve.

Connect the collection system (pipe and reservoir) to the bleed valve on the clutch operating cylinder.

Loosen the bleed screw and let the hydraulic clutch system drain completely.

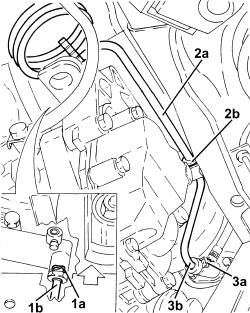

1. Lift the retaining clip (1a) and disconnect the pipe from the master cylinder (1b), operating cylinder side.

2. Release the master cylinder supply pipe (2a) from the bands (2b).

3. Lift up the retaining clip (3a) and disconnect the pipe from the master cylinder (3b), master cylinder side and remove it.

1.3 JTD 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B02 left front wheel r r

Proceed with removal - 7055B90 Left front WHEEL ARCH LINER - R.R.

Remove the cap on the bleed valve.

Connect the collection system (pipe and reservoir) to the bleed valve on the clutch operating cylinder.

Loosen the bleed screw and let the hydraulic clutch system drain completely.

1. Lift the retaining clip (1a) and disconnect the pipe from the master cylinder (1b), operating cylinder side.

2. Release the supply pipe from the master cylinder (2a) from the bands (2b) on the flexible mounting for the gearbox side rigid power unit support.

3. Lift up the retaining clip (3a) and disconnect the pipe from the master cylinder (3b), master cylinder side and remove it.

1.4 16v

Refitting

Place the pipe from the master cylinder back in its housing, introduce it fully into the housing on the master cylinder and secur it using the retaining clip.

Fasten the master cylinder supply pipe using the bands.

Fit the pipe from the master cylinder fully home in its seat on the clutch operating cylinder and secure with the retaining clip.

Proceed with refitting - 0010T64 brake and or clutch fluid check level and top up as necessary.

Proceed with refitting - 0010T67 hydraulic clutch system bleed air.

Proceed with refitting - 7055B90 Left front WHEEL ARCH LINER - R.R..

Proceed with refitting - 4450B02 left front wheel r r.

Remove the car from the ramps.

1.3 JTD 16v

Refitting

Place the pipe from the master cylinder back in its housing, introduce it fully into the housing on the master cylinder and secur it using the retaining clip.

Fasten the supply pipe from the master cylinder to the flexible mounting for the gearbox side rigid power unit support using the bands.

Fit the pipe from the master cylinder fully home in its seat on the clutch operating cylinder and secure with the retaining clip.

Proceed with refitting - 0010T64 brake and or clutch fluid check level and top up as necessary.

Proceed with refitting - 0010T67 hydraulic clutch system bleed air.

Proceed with refitting - 7055B90 Left front WHEEL ARCH LINER - R.R..

Proceed with refitting - 4450B02 left front wheel r r.

Remove the car from the ramps.
