A1 Battery

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A1 Battery

Connectors and pin-outsA1 Battery

A1 Battery

A1A – Battery positive

1.3 JTD 16v

Wiring	Colour
41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		A20A

1.4 16v, 1.3 JTD 16v

Wiring	Colour
41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		B1X

1.4 16v

Wiring	Colour
41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		A20A

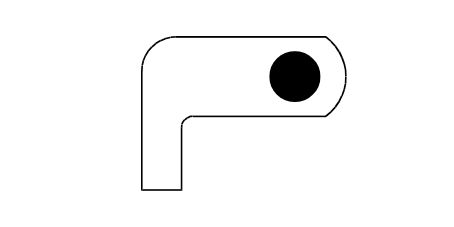

A1B – Battery negative

1.3 JTD 16v

Wiring	Colour
40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	N	X	C3
				C2

1.4 16v

Wiring	Colour
40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	N	X	C3
				C2

A1C – Front

1.3 JTD 16v

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	6	R		B37

21 General
