A10 Alternator

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A10 Alternator

Connectors and pin-outsA10 Alternator

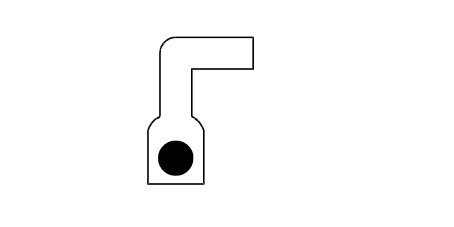

A10 Alternator

A10A – Engine

1.3 JTD 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		D4	H

1.4 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HN		D4	H

A10B – Recharging

1.4 16v, 1.3 JTD 16v

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		A20A
