D4 Front/engine connection

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D4 Front/engine connection

Connectors and pin-outsD4 Front/engine connection

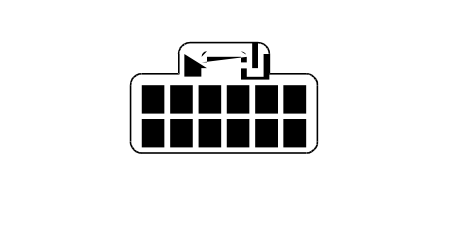

D4 Front/engine connection

1.3 JTD 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
C		GH	X	B1C	7
				M15C	3
				B1C	6
H		LS		M1A	19
J	1	MB		B1C	4
L	1	NZ		C10	9
M		MB		B1C	17

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
C		HG	X	L30	1
				K41	2
				M10B	5
H		MN		A10
J	1	MB		L20	1
L	1	N		L20	2
M		MB		A20

1.4 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	1.5	HG		B1C	18
C	1	AN		B1C	7
D		CR		K120	C
G		H		M10A	42
H		HN		M1A	19
J		MN		B1C	4
L		NZ		C10	9
M	1.5	MB		B1C	17

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	1.5	HG	X	A30A	3
				A30B	3
				A30C	3
				A30D	3
				D81	5
C	1	AN	X	L10	1
				K15	4
				K17	4
D		CR		M10B	54
G		H		K30	1
J		MN		L20	1
L		N		L20	2
M	1.5	MB		A20
