C10 Front left earth

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Earths › C10 Front left earth

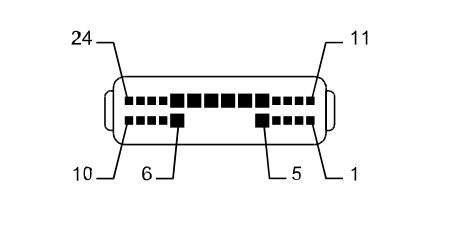

Connectors and pin-outsC10 Front left earth

C10 Front left earth

1.4 16v, 1.3 JTD 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1.5	N		N25	2
3		NZ		K25	2
4	1	N		P5B	1
5	1.5	N		F10	14
6		NZ		B1A	26
7		N		F10	8
9		NZ		D4	L
13	1.5	N		F11	14
14		N		F11	8
15	2.5	N		H5A	7
16	2.5	N		N15	2
24		NZ		I31	4

21 General
