C31 Rear right earth

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Earths › C31 Rear right earth

Connectors and pin-outsC31 Rear right earth

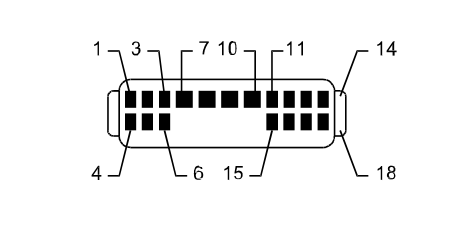

C31 Rear right earth

1.4 16v, 1.3 JTD 16v · High setup

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		D31	27
2		N		F31	5
4		NZ		D36	A5
5		NZ		D36	C2
6	1.5	N		I50	1
7	2.5	N		D31	9
9	1.5	HN		P70	7
10		NV		D71	3
11		N		F21	2
12	1.5	N		P50	3
13	1.5	N		P51	3
14		NV		D70	3
15		N		F20	2
17		LN		J62A	3
18		LN		J62B	3

1.4 16v, 1.3 JTD 16v · Low setup

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		D31	19
2		N		F31	5
3		NZ		D31	5
4		NZ		D36	A5
6	1.5	N		I50	1
8	2.5	CB		D30	26
9	1.5	HN		P70	7
10		NV		D71	3
11		N		F21	2
12	1.5	N		P50	3
13	1.5	N		P51	3
14		NV		D70	3
15		N		F20	2
17		LN		J62A	3
18		LN		J62B	3
