D1 Front / dashboard coupling

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D1 Front / dashboard coupling

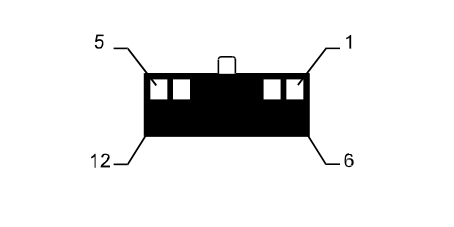

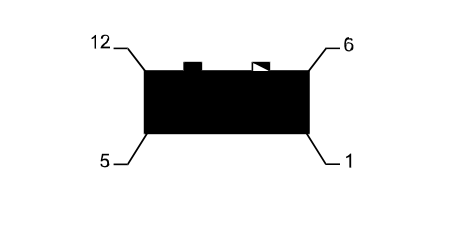

Connectors and pin-outsD1 Front / dashboard coupling

D1 Front / dashboard coupling

1.3 JTD 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		D6	2
4		AN		B1A	21
5		BV		M10A	78
6		BN		M86B	4
7		L		K39	2
8		NZ		K39	1

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		D97F	3
4		AN		D47	1
5		BV		E50B	18
6		BN		M1H	11
7		L		M60A	12
8		NZ		C50A	1

1.4 16v

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		D6	2
4		AN		B1A	21
5		BV		M10A	31
6		BN		M86B	4
7		L		K39	2
8		NZ		K39	1
