D89 Parking sensor coupling

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D89 Parking sensor coupling

Connectors and pin-outsD89 Parking sensor coupling

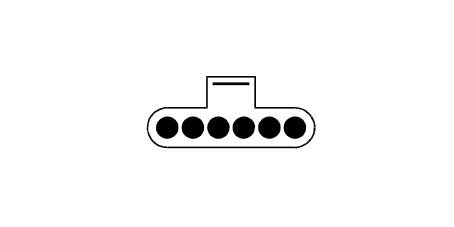

D89 Parking sensor coupling

1.4 16v, 1.3 JTD 16v

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AV		M84C	5
2		AL		M84C	3
3		NZ		M84C	1
4		CB		M84C	2
5		BL		M84C	6
6		AN		M84C	4

Wiring	Colour
74 PARKING SENSOR BRAID	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	AV		K97	A1
2	AL		K97	B1
3	NZ	X	K97
			K97	B2
			K97	C2
			K97
4	CB		K97	C1
5	BL	X	K97
		X	K97
		X	K97	C3
		X	K97
6	CN		K97	D1
