D8 Air conditioning - heater coupling

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D8 Air conditioning - heater coupling

Connectors and pin-outsD8 Air conditioning - heater coupling

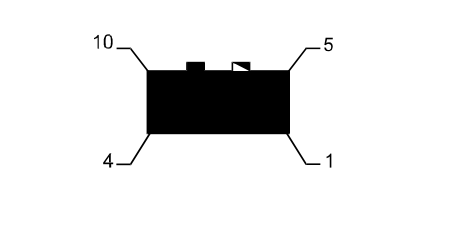

D8 Air conditioning - heater coupling

D8A

1.3 JTD 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS		M1B	27
2		BS		M1B	26
4	4	N		B1B	C
5		BN		M10A	28

1.4 16v

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS		M1B	27
2		BS		M1B	26
4	4	N		B1B	C
5		BN		M10A	40

D8A – Heater

1.4 16v, 1.3 JTD 16v · Heater

Wiring	Colour
67 HEATER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
4	2,5	A		N85	1

D8A – Air conditioning

1.4 16v, 1.3 JTD 16v · Two-zone climate control system

Wiring	Colour
65 AIR CONDITIONING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		SN		M70	2
2		SB		M70	1
4	2,5	C		N85	4
5		GV		M70	21
6		BH		M70	6

1.4 16v, 1.3 JTD 16v · Manual Air Conditioning

Wiring	Colour
65 AIR CONDITIONING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
4	2,5	A		N85	1
5		V		K86	2

D8B – Facia

1.4 16v, 1.3 JTD 16v

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LR		M1H	26
2		N		C20	8
3		RN		B2H	4
5		GN		D97P	2
6		AN		D97F	4
7		CB		M1G	29
8		CL		M1G	34
9		BM		M1G	32
10		BL		M1H	21

D8B – Heater

1.4 16v, 1.3 JTD 16v · Heater

Wiring	Colour
67 HEATER	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		R		H80	7
3		B		H80	6
5		RV		H80	8
6		LG		H80	9
7		HN		H80	4
8		CN		H80	3
9		MN		H80	2
10		SV		H80	11

D8B – Air conditioning

1.4 16v, 1.3 JTD 16v · Two-zone climate control system

Wiring	Colour
65 AIR CONDITIONING	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		R		M70	30
2		N		M70	40
3		A		M70	39
4		AB		M70	16
7		SZ		M70	14
8		VN		M70	15
9		GN		M70	4
10		BL		M70	13

1.4 16v, 1.3 JTD 16v · Manual Air Conditioning

Wiring	Colour
65 AIR CONDITIONING	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		R		H80	7
2		N		K86	2
3		LG		H80	6
5		RV		H80	8
6		LG		H80	9
7		HN		H80	4
8		CN		H80	3
9		MN		H80	2
10		SV		H80	11
