Fiat Idea Factory Service Manual (2003-2012)21 · Connectors and pin-outs
21 · General

D73 Trailer wiring connection

Make
Fiat
Model
Idea Factory Service Manual
Year
2003–2012
Section
Intermediate couplings › D73 Trailer wiring connection
Connectors and pin-outsD73 Trailer wiring connection

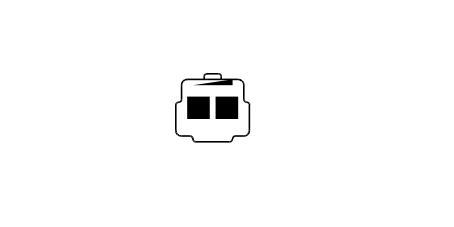

D73 Trailer wiring connection

1.4 16v, 1.3 JTD 16v · High setup

D73 Trailer wiring connection
WiringColour
25 REAR
PinCableDestination
Sec.ColourNodeConnect.Pin
11.5RM63AB7
2ALM84A5

1.4 16v, 1.3 JTD 16v · Low setup

D73 Trailer wiring connection
WiringColour
25 REAR
PinCableDestination
Sec.ColourNodeConnect.Pin
11.5RD97N9
2ALM84A5
