Characteristics of lubricants
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Introduction (Panda D) › Characteristics of lubricants
00 Introduction and technical dataCharacteristics of lubricants

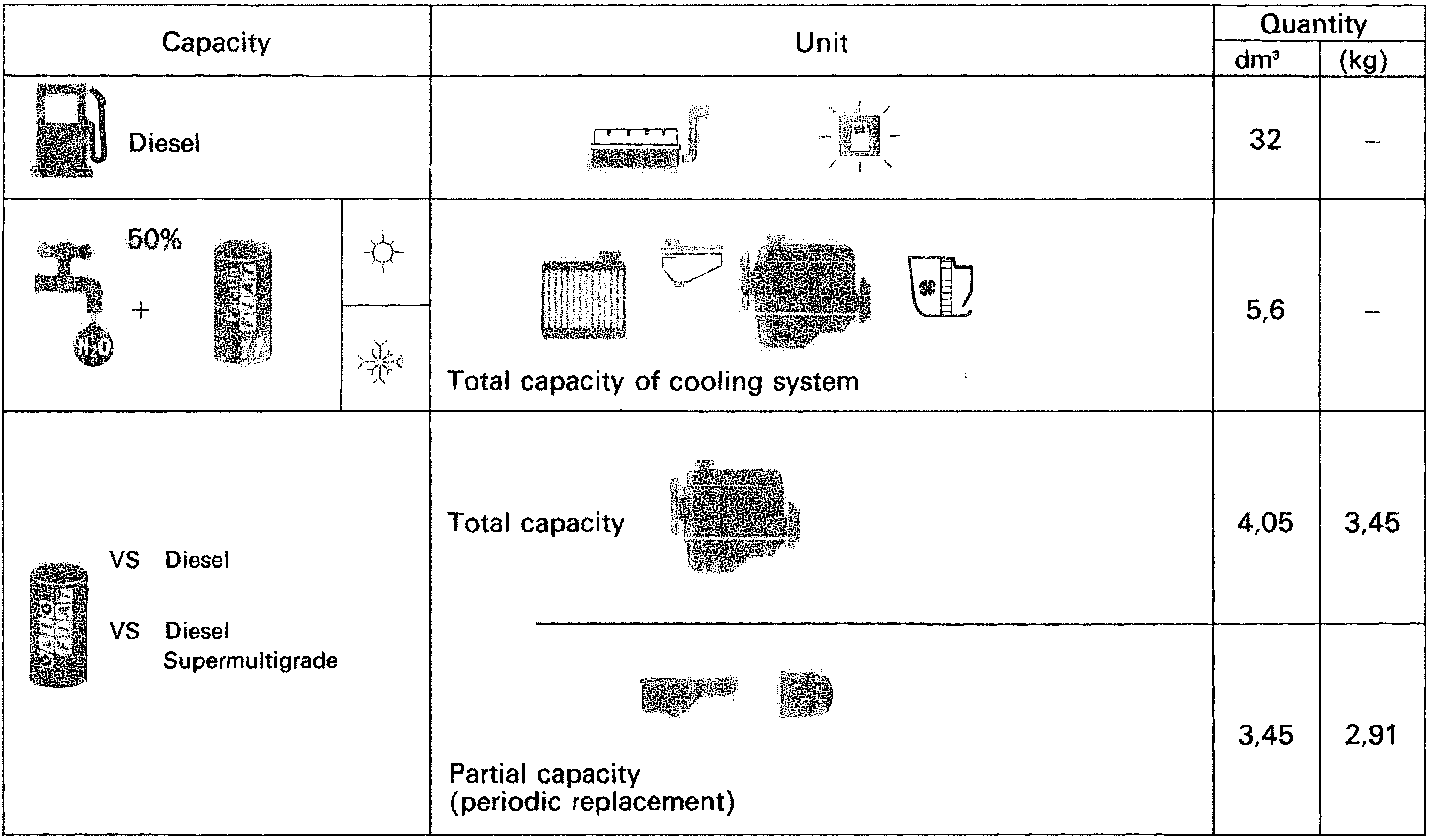

| Capacity | Unit | Quantity | |
|---|---|---|---|
| dm³ | (kg) | ||
| Diesel | [icon] | 32 | – |
| 50% + [icon] Total capacity of cooling system |
[icons] | 5,6 | – |
| VS Diesel VS Diesel Supermultigrade |
Total capacity | 4,05 | 3,45 |
| Partial capacity (periodic replacement) |
3,45 | 2,91 | |

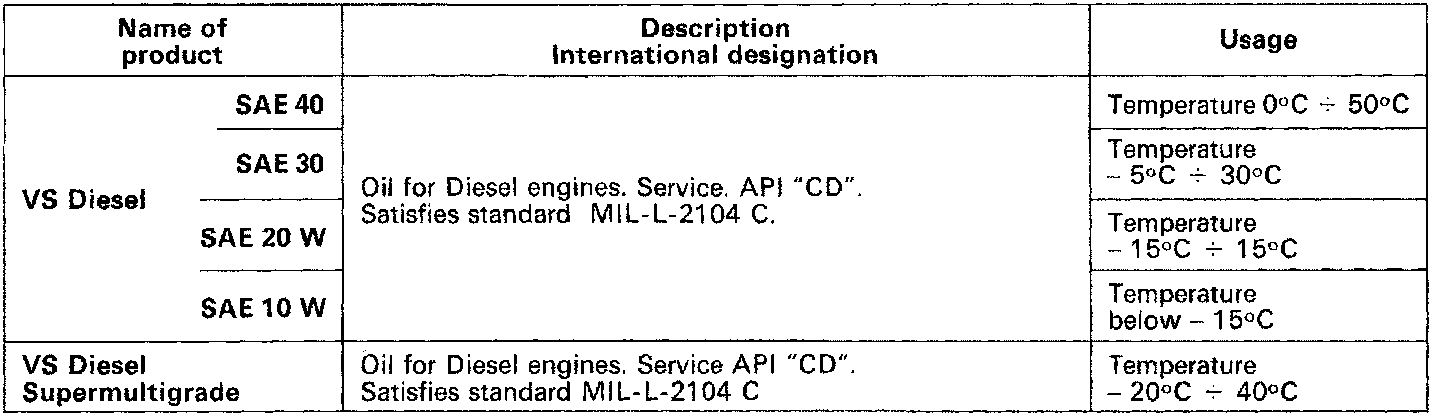

CHARACTERISTICS OF LUBRICANTS
| Name of product | Description International designation |
Usage |
|---|---|---|
| VS Diesel | SAE 40 | Temperature 0°C ÷ 50°C |
| SAE 30 | Temperature – 5°C ÷ 30°C |
|
| SAE 20 W | Oil for Diesel engines. Service. API "CD". Satisfies standard MIL-L-2104 C. |
|
| SAE 10 W | Temperature below – 15°C |
|
| VS Diesel Supermultigrade | Oil for Diesel engines. Service API "CD". Satisfies standard MIL-L-2104 C |
Temperature – 20°C ÷ 40°C |
