Fiat Panda (141) Factory Service Manual (1986-2003)01 · 00 Introduction and technical data
01 · General

Performance

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Introduction (Panda D) › Performance
00 Introduction and technical dataPerformance

Performance – diagram from the 00 Introduction and technical data chapter of the Fiat Panda (141) Factory Service Manual (1986-2003) factory manual.

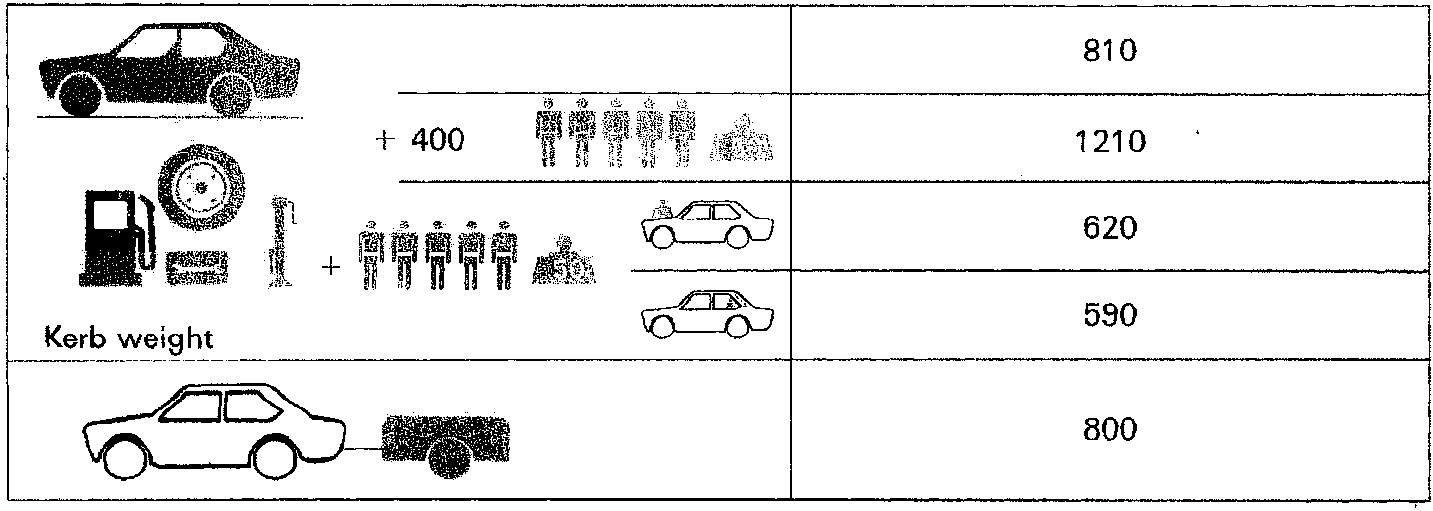

(in kg)

Diagram showing vehicle weight configurations with values 810, 1210, 620, 590, and 800 kg

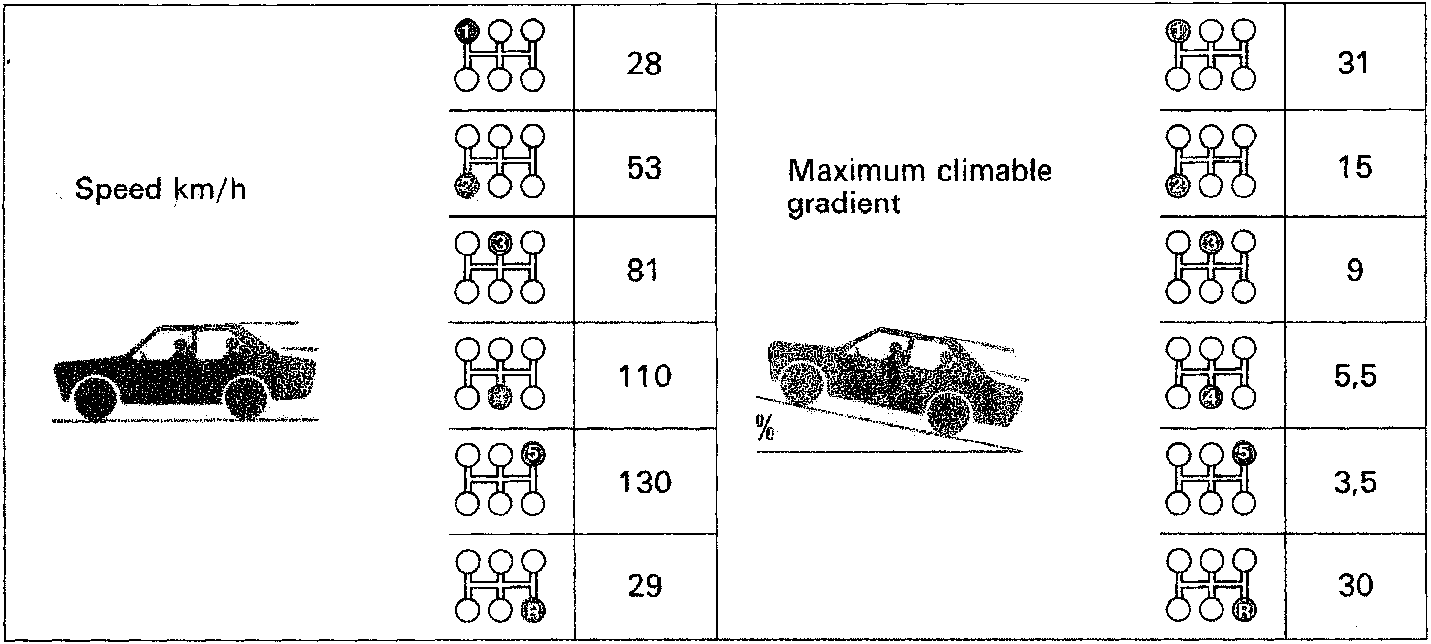

PERFORMANCE

Performance chart showing Speed km/h and Maximum climable gradient values corresponding to gear positions

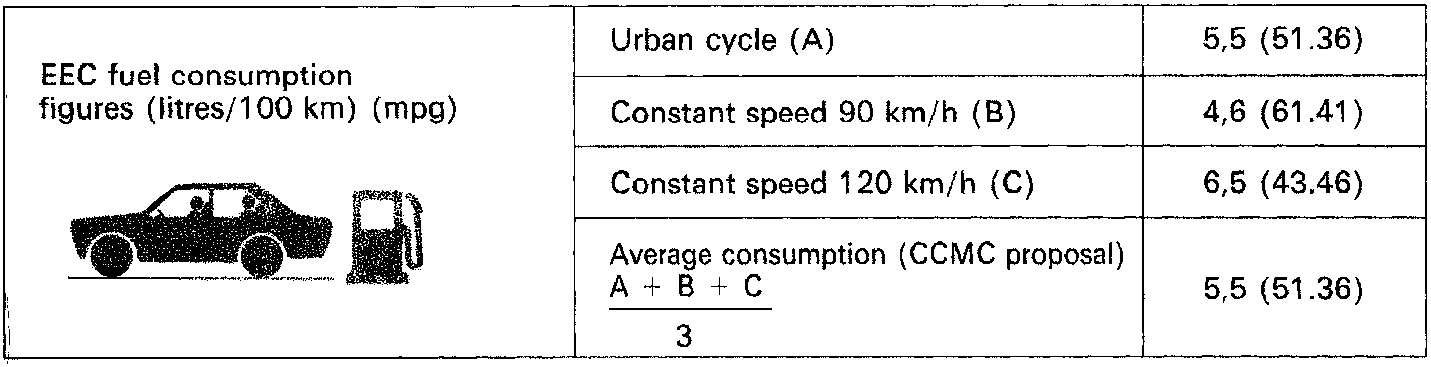

FUEL CONSUMPTION

Fuel consumption table showing EEC figures for Urban cycle, Constant speed, and Average consumption
