Fiat Panda (141) Factory Service Manual (1986-2003)01 · 00 Introduction and technical data
01 · General

Location on vehicle

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Introduction (Panda D) › Location on vehicle
00 Introduction and technical dataLocation on vehicle
F1CHASSISENGINEVERSION5 speed Gearbox
1300ZFA 141.000156 A5.000141 AD 53 A●

LOCATION ON VEHICLE

A Vehicle type identification code and chassis manufacture number

B V.I.N. plate (EEC regulations)

C Engine type and number

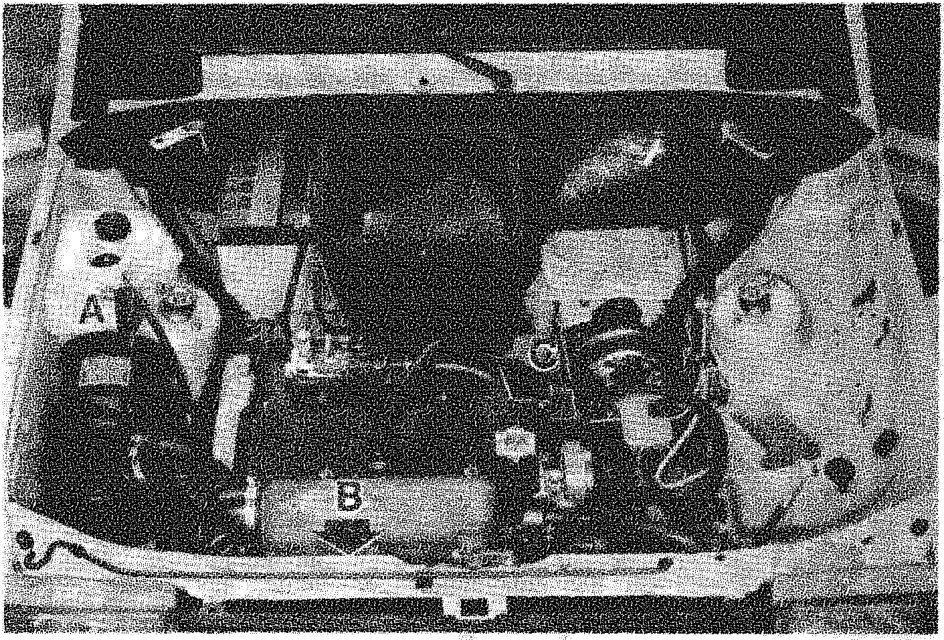

View of the engine compartment showing locations A, B, and C marked on components

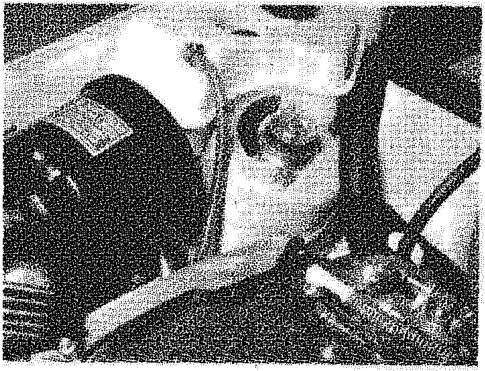

Close-up view of the vehicle type identification code and chassis manufacture number area
Close-up view of the engine type and number stamping on the engine block

A. Name of manufacturer

B. Homologation number

C. Vehicle type identification code

D. Chassis manufacture number

E. Maximum authorized weight of vehicle fully laden

F. Maximum authorized weight of vehicle fully laden plus tow

G. Maximum authorized weight on first axle (front)

H. Maximum authorized weight on second axle (rear)

I. Engine type

L. Bodywork version code

M. Spares number

N. Correct value of smoke absorption coefficient = 1,68 M-1
V.I.N. plate showing fields labeled A through N
