Gearbox and differential

Differential unit

21-27.

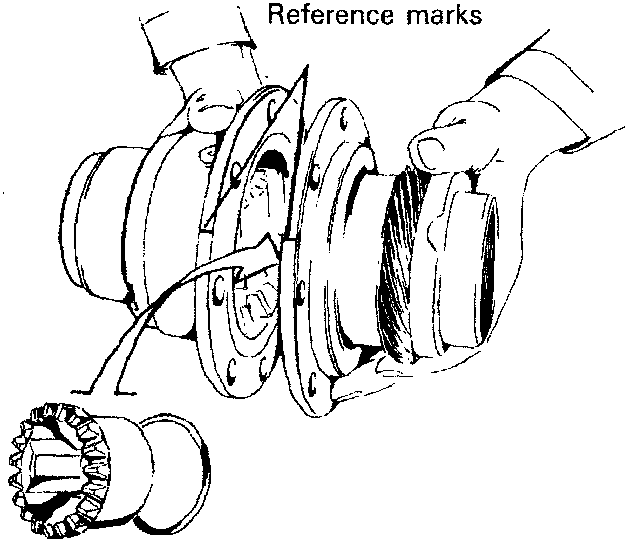

Diagram showing the two halves of a differential being aligned with reference marks indicated by arrows. A hand is shown holding one half, and a planet gear assembly is visible in the lower left corner.

Fitting two halves of differential

Ensure that the reference marks on the two halves coincide.

NOTE The shims fitted on the planet gears must be of the same thickness.

The parts concerned with transmission fluid before fitting.

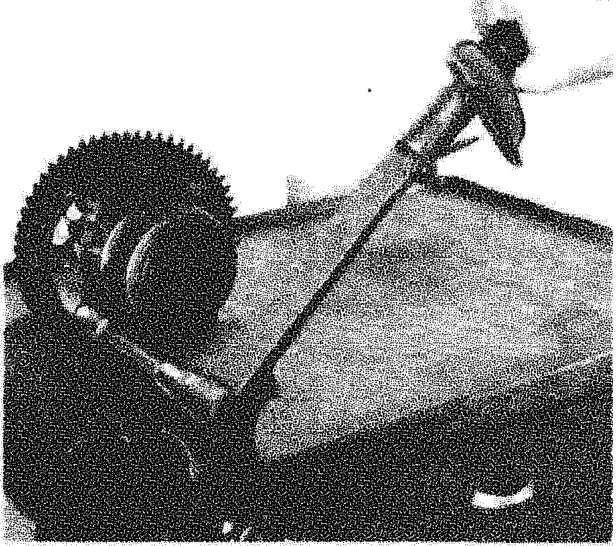

Photograph showing a crown wheel being fitted onto a differential casing using a tool to align it.

8,8 daNm

Fitting crown wheel on differential casing

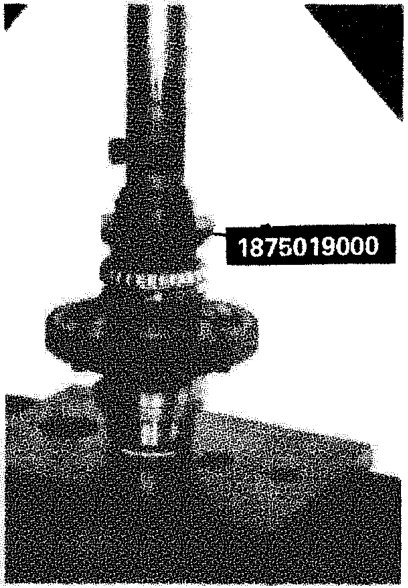

Photograph showing a bearing being pressed onto a differential casing using a press tool. The part number 1875019000 is labeled on the tool.

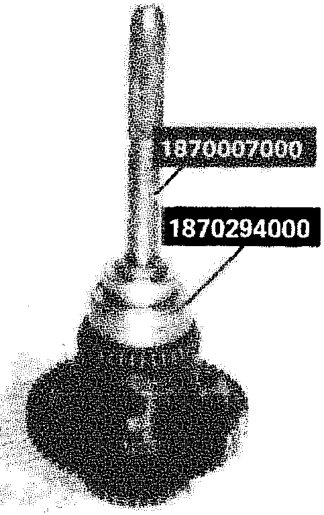

Photograph showing a close-up of a bearing being fitted onto a shaft. Two part numbers are labeled: 1870007000 and 1870294000.

Fitting bearing on differential casing
on the press using special tools
