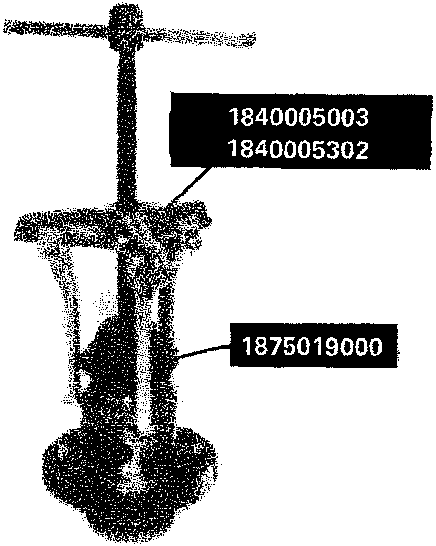

Removing roller bearings from differential casing

Removing roller bearings from differential casing

The bearings are replaced whenever there is evidence of grooves, hot spots or excessive wear.

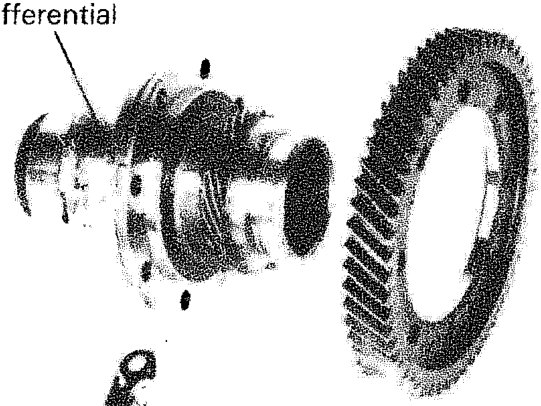

Reference marks for matching the two halves of the differential

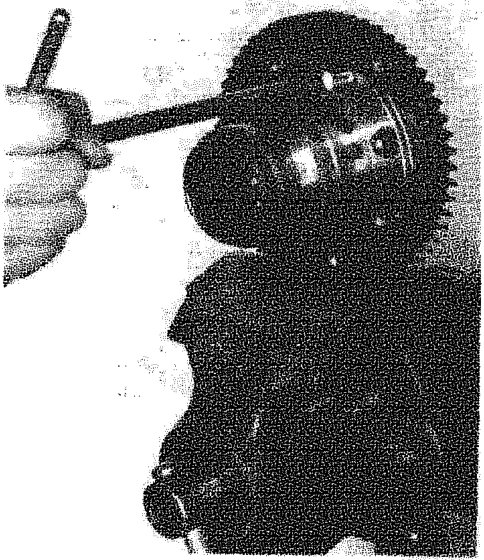

Removing crown wheel from differential casing

In the case of high mileage whenever it is necessary to replace the crown wheel it is also a good idea to replace the pinion.

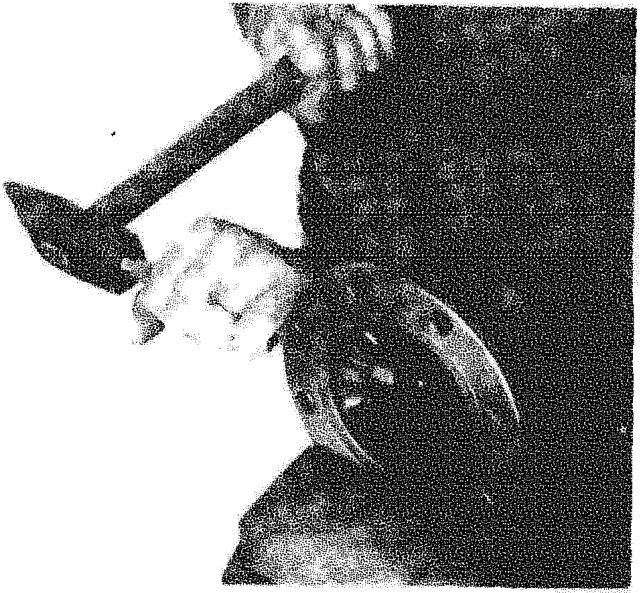

Dismantling and removing differential casings and satellite carrier shaft

There must be no evidence of seizing, wear or excess clearance on the satellite carrier shaft.

The satellite and planet gears must not have any chips or wear on the work surfaces.
