Lay shaft assembly

LAY SHAFT ASSEMBLY

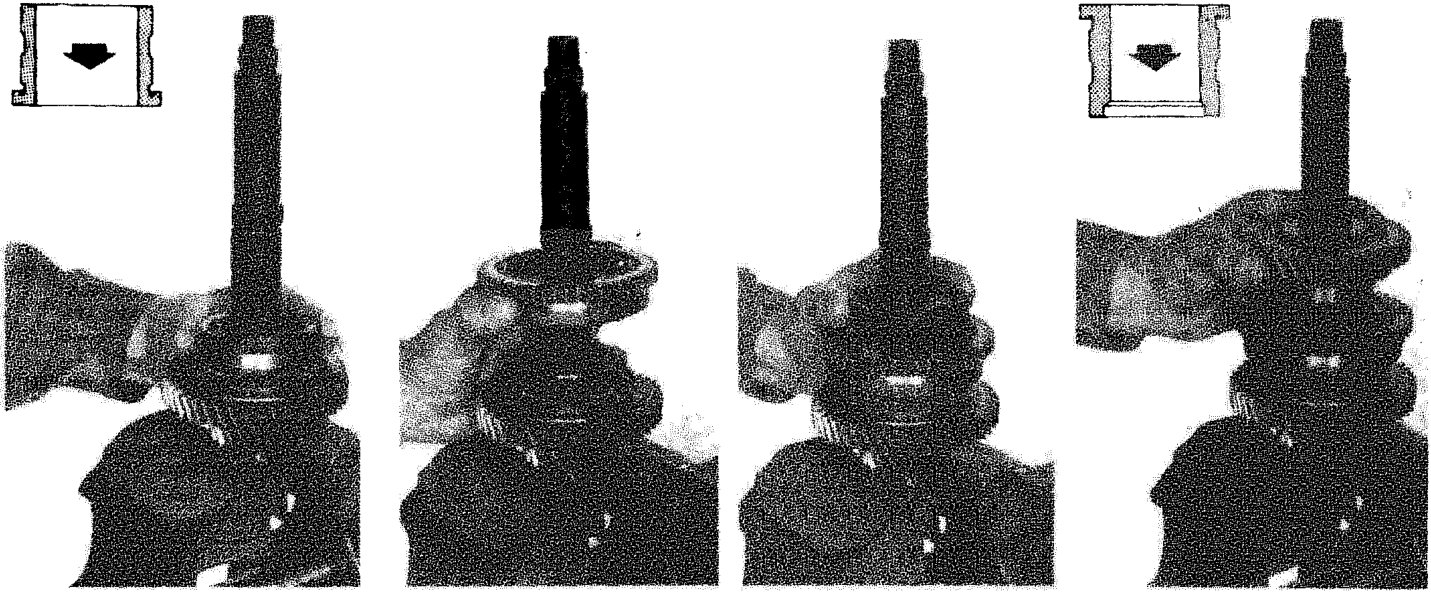

Fitting 1st speed driven gear with relative bush and synchronizer

Fitting hub complete with blocker plates, 1st and 2nd speed sliding sleeve and synchronizer for 2nd speed

The 1st and 2nd speed sliding sleeve is positioned with the teeth towards the 1st speed gear.

Fitting 2nd speed driven gear with relative bush

The parts concerned before fitting with transmission fluid

The 1st and 2nd speed synchronizers must move freely in their seats.

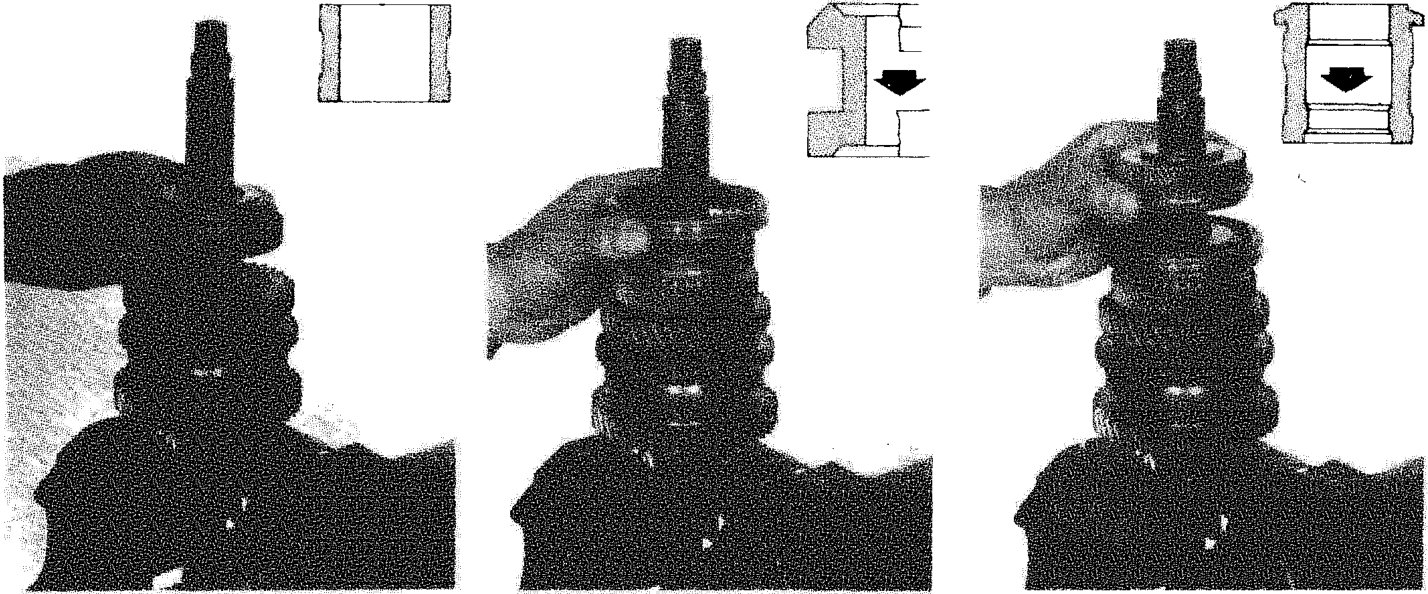

Fitting bush and driven gear complete with 3rd speed synchronizer

Fitting 3rd and 4th speed hub and sliding sleeve

Fitting 4th speed driven gear complete with synchronizer and relative bush
